DRAINFIX CLEAN filter substrate channel | Rainwater treatment

IDEAL FOR: Surface drainage and rainwater treatment for traffic areas up to Class F 900 for logistics centres, parking areas and industrial facilities
%s


YOUR BENEFITS WITH DRAINFIX CLEAN

HIGH RETENTION CAPACITY

= Performance assured
SHOW DETAILS

HIGH RETENTION CAPACITY

  • treatment efficiency secured even in heavy rain events
= Performance assured

EXTREMELY LONG MAINTENANCE INTERVALS

= Cost savings | Performance assured
SHOW DETAILS

EXTREMELY LONG MAINTENANCE INTERVALS

  • first inspection after 10 years (depends on local conditions and calculation)
  • if maintenance is neccessary only filter cake has to be removed
= Cost savings | Performance assured

HIGH STABILITY

= Quality assured
SHOW DETAILS

HIGH STABILITY

  • withstands high traffic loads
  • resistanve against temperatur differences
  • stable and unbreakable material / channel system
= Quality assured


EXCELLENT TREATMENT EFFECT

= Quality assured | Performance assured
SHOW DETAILS

EXCELLENT TREATMENT EFFECT

  • approved by German Institute for Building Technology (DIBt)
  • efficiency of treatment:
    - Total suspended solids (TSS): 99,5 %
    - Total petroleum hydrocarbons (TPHs): 99,9 %
    - Zn: 99,8 %
    - Cu: 99,8 %
  • complies with legislative requirements
  • treatment efficiency secured even in heavy rain events
= Quality assured | Performance assured

LOW WEIGHT ENSURES EASY HANDLING ON SITE

= Design Flexibility | Cost savings
SHOW DETAILS

LOW WEIGHT ENSURES EASY HANDLING ON SITE

  • much lighter than channels made of polymer / resin concrete
  • easy handling in stock and on site
  • cost-effective transportation
= Design Flexibility | Cost savings

RENOWNED DEVELOPMENT PARTNERS

= Quality assured
SHOW DETAILS

RENOWNED DEVELOPMENT PARTNERS

  • the development of the system was monitored and supported by approved institutions:
    Bioplan: The experts for ecologically meaningful and cost saving drainage projects
    KIT: Karlsruhe Institute of Technology
    AiF - supported project:The AiF supports research and technically certified in many countries
= Quality assured


MORE USABLE SURFACE

= Design Flexibility | Cost savings
SHOW DETAILS

MORE USABLE SURFACE

  • all in one system:
    - drainage
    - retention
    - Treatment
    - discharging
  • more effective usage of area compared to other treatment systems, e.g. green swales
  • no additional space requirement
= Design Flexibility | Cost savings

FLEXIBLE SYSTEM

= Design Flexibility | Cost savings
SHOW DETAILS

FLEXIBLE SYSTEM

  • adjustable to various requirements and local conditions
  • discharge of treated water:
    - percolation into groundwater
    - open water bodies
    - surface water sewer network
  • tailor-made solutions
= Design Flexibility | Cost savings


THE SYSTEM IN DETAIL

%s
FASERFIX SUPER Latakai gaminami iš pluoštu armuoto betono, pagal DIN V 19580 / EN 1433, atitinka CE, su cinkuoto arba nerūdijančio plieno briaunomis
Kalaus ketaus grotelės iki apkrovos klasės F 900 pagal EN 1433, skirtingas grotelių pasirinkimas, pagal užsakymą kalus ketus gali būti padengtas KTL
Filtruojantis pasluoksnis su anglimi, geros filtravimo savybės, sulaiko smulkias daleles (0.006 iki 0.060 mm); išvalymas atitinka iki 30 cm neprisotintų žemių ribų
Nuotekų surinkimo vamzdis, pagamintas iš stabilios medžiagos PE-HD, skirtingų dydžių, įvyniotas į geotekstilę
Išvalytos lietaus nuotekos, tinkamos sugerdinimui į gruntą pagal DWA reglamentą, naudojant požemines infiltracines sistemas

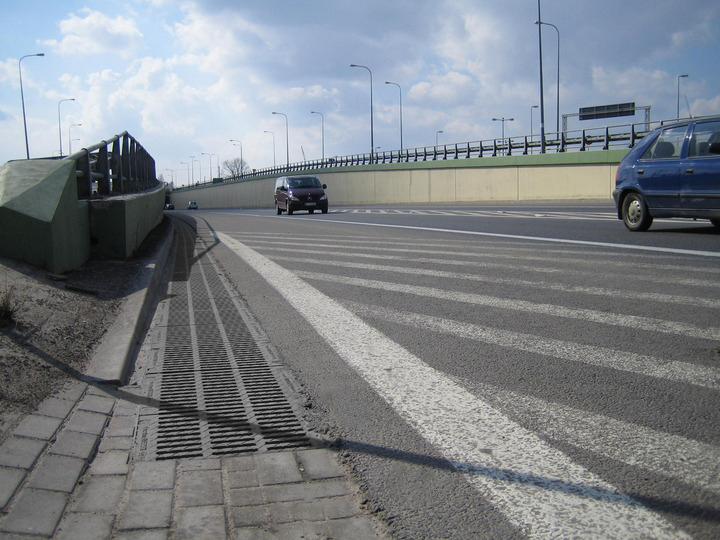

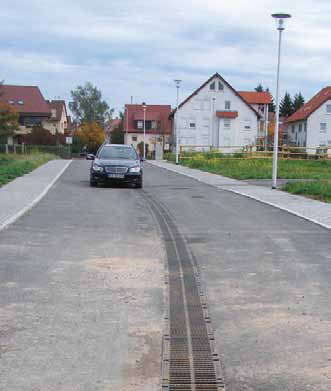

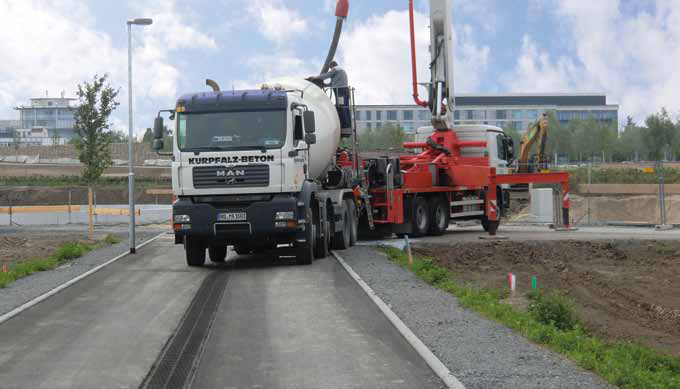

DRAINFIX CLEAN Applications
