FASERFIX BIG BLS drainage channel as prefabricated reinforced concrete element
IDEAL FOR: extreme loads in basically all concrete pavement areas, LAU facilities, air traffic areas, port facilities/container terminals, container terminals with "ReachStacker" loading, industrial and logistics areas, tunnel drainage, heavy-duty traffic areas also in combination with stormwater treatment.
YOUR BENEFITS WITH FASERFIX BIG BLS
EINFORCED CONCRETE PRECAST ELEMENT TYPE I ACCORDING TO EN 1433
- Steel-reinforced concrete runner already integrated
- No formwork, reinforcement and in-situ concrete work required
- Savings of 2 m sealing joint per meter of channel
= Kaštų taupymas
COMPONENT IN 4 AND 5 M LENGTH
- high laying performanc
- 75 % or 80 % fewer gutter butt joints (compared to 1 meter construction length)
- in the WHG area therefore 75 - 80 % fewer maintenance joints
= Kaštų taupymas | Laiko taupymas
RESILIENCE ACCORDING TO INTERNATIONAL PARAMETERS
- LCN airport categorization according to ICAO
- up to 100 tons axle load
- overrideable for large aircraft as well as reachstackers
= Ilgaamžiškumas | Užtrikrinta kokybė
VERIFICATIONS AND APPROVALS
- Tested structural analysis of channel construction and foundation design
- no additional external statics required
- with general technical approval (abZ) by DIBt (Z-74.4-141)
- with AKR Performance Test practical and realistic installation situations
= Kaštų taupymas | Užtrikrinta kokybė
MATERIAL: FDE CONCRETE
- FDE = liquid-tight concrete after penetration test
- highest load capacity due to strength class C 60/75
- Exposure class: XF4, XC4, XM2, XD3, XA2
= Ilgaamžiškumas | Užtrikrinta kokybė
FACTORY-FITTED PE SPACE JOINT INSERT
- Full-surface absorption of thermal stresses in the longitudinal direction
- Space joint insert provides stop for the PE round cord of the sealing joint
- less joint material consumption
= Kaštų taupymas | Ilgaamžiškumas
ZARGEN
- 16-fold fixation possibility of the cover per meter (incl. 8-fold with optional screw connection)
- 40 mm insertion depth
= Užtrikrinta kokybė

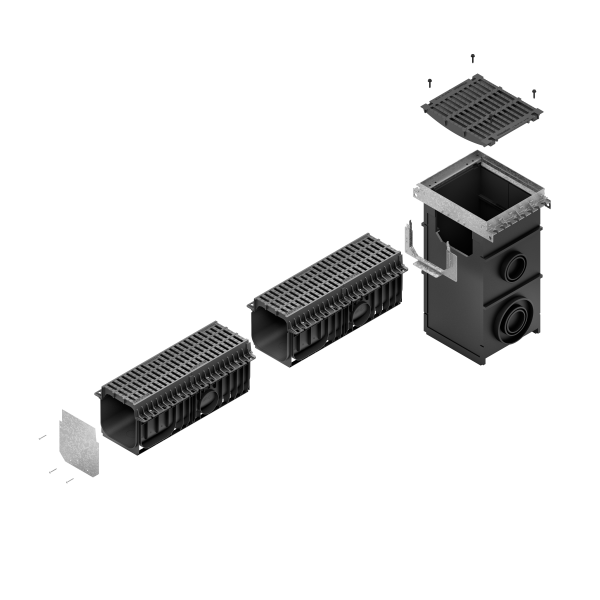

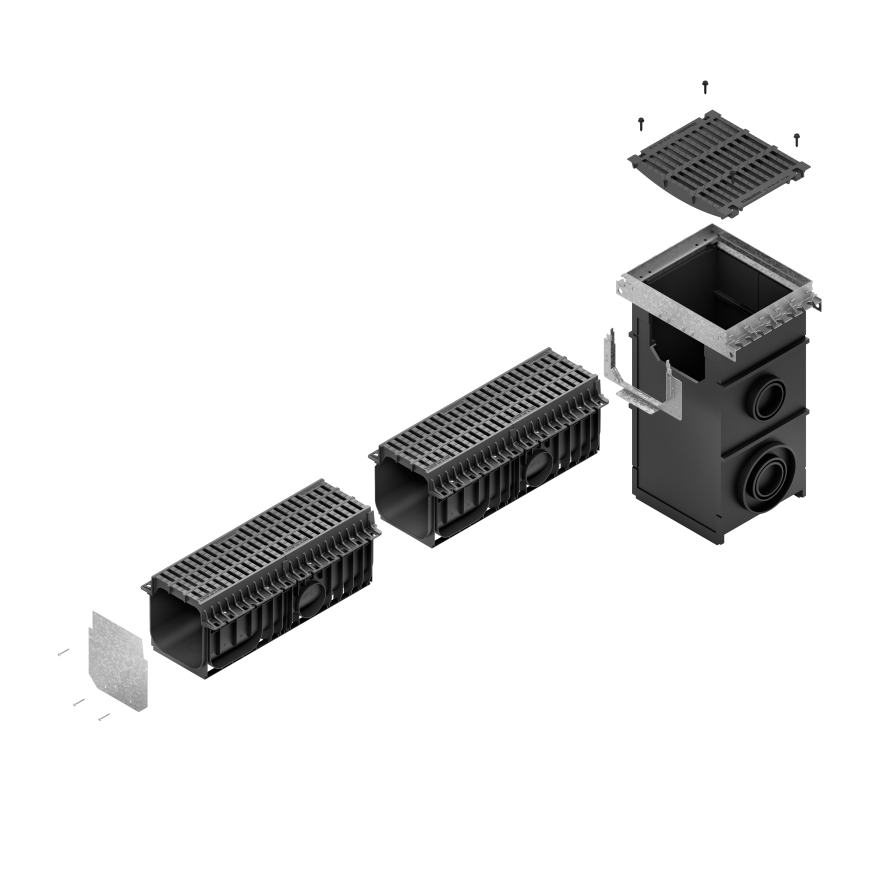

SISTEMOS ELEMENTAI
Galinė sienelė
