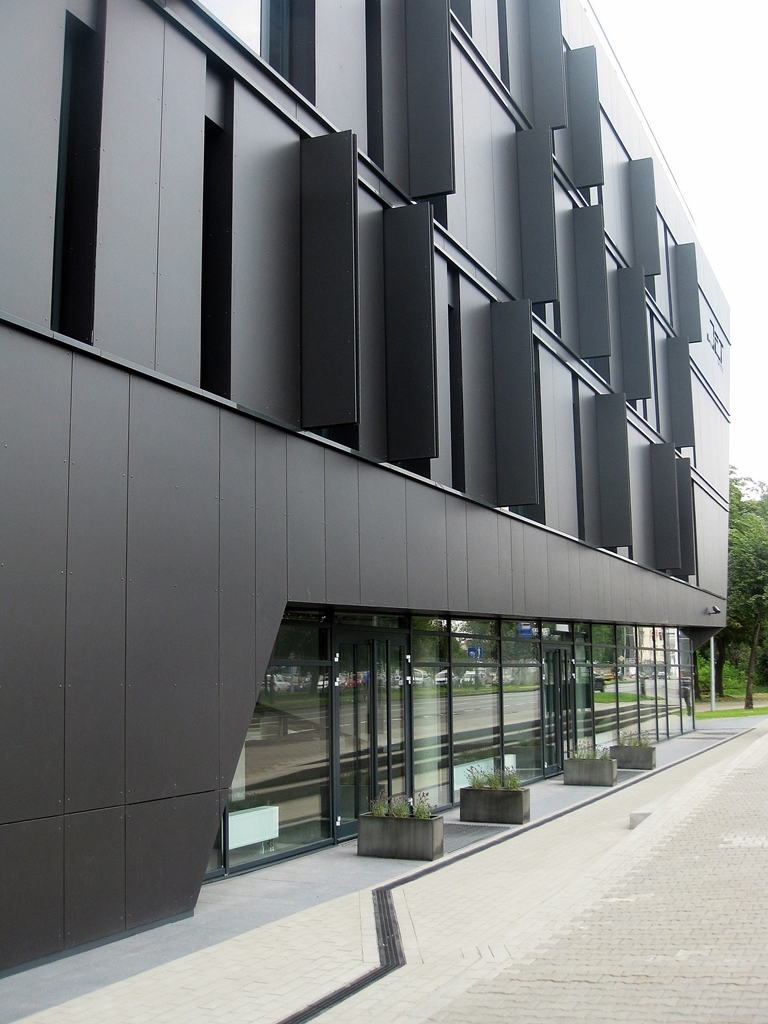

FASERFIX KS drainage channel | commercial & public areas

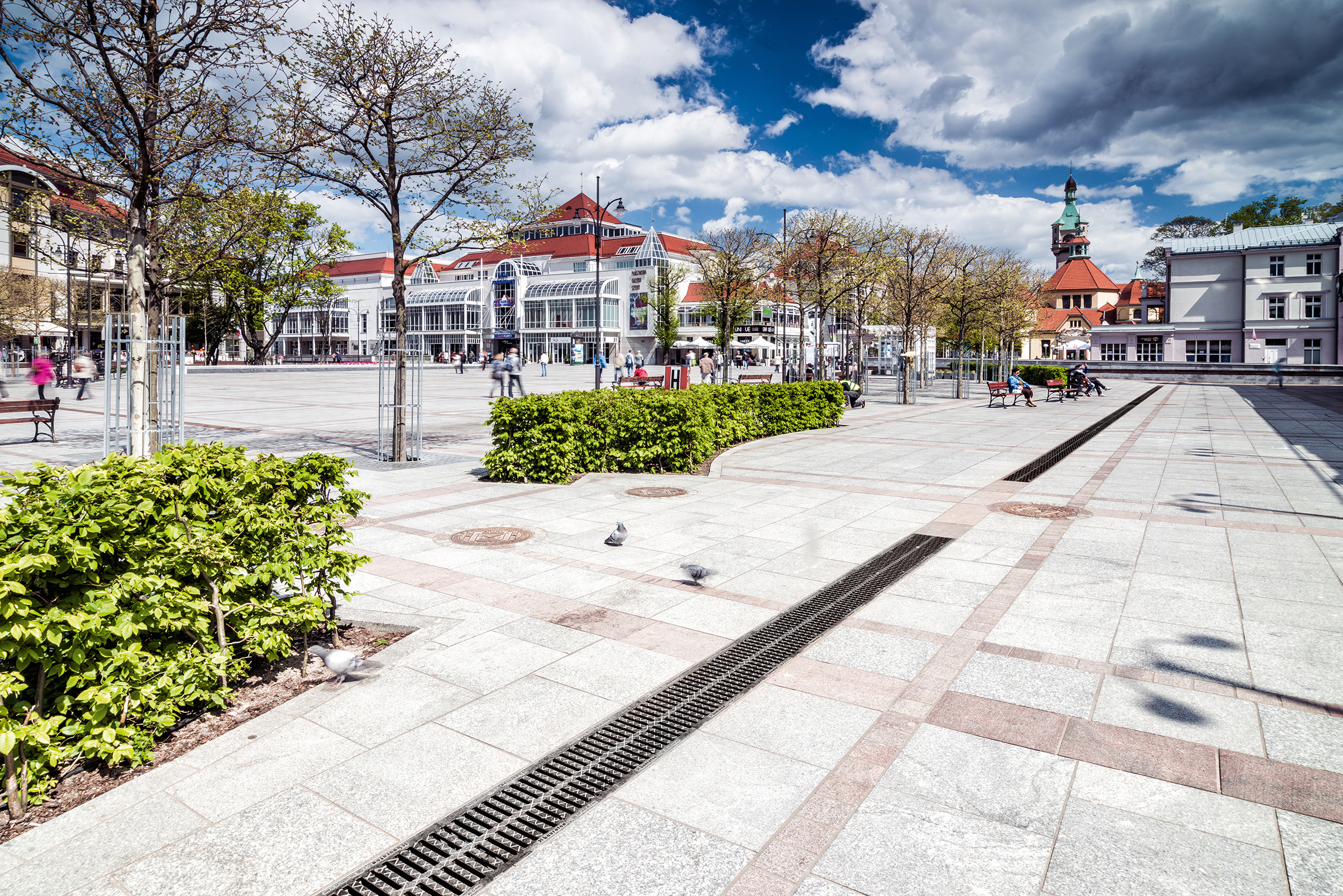

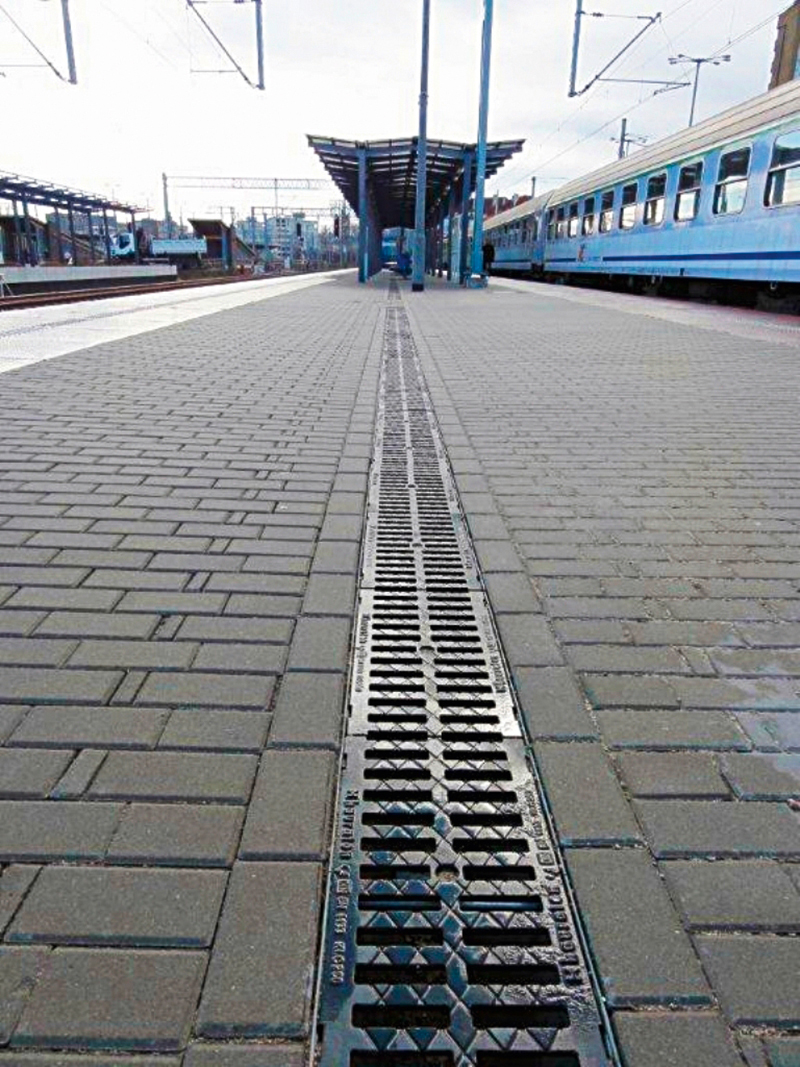

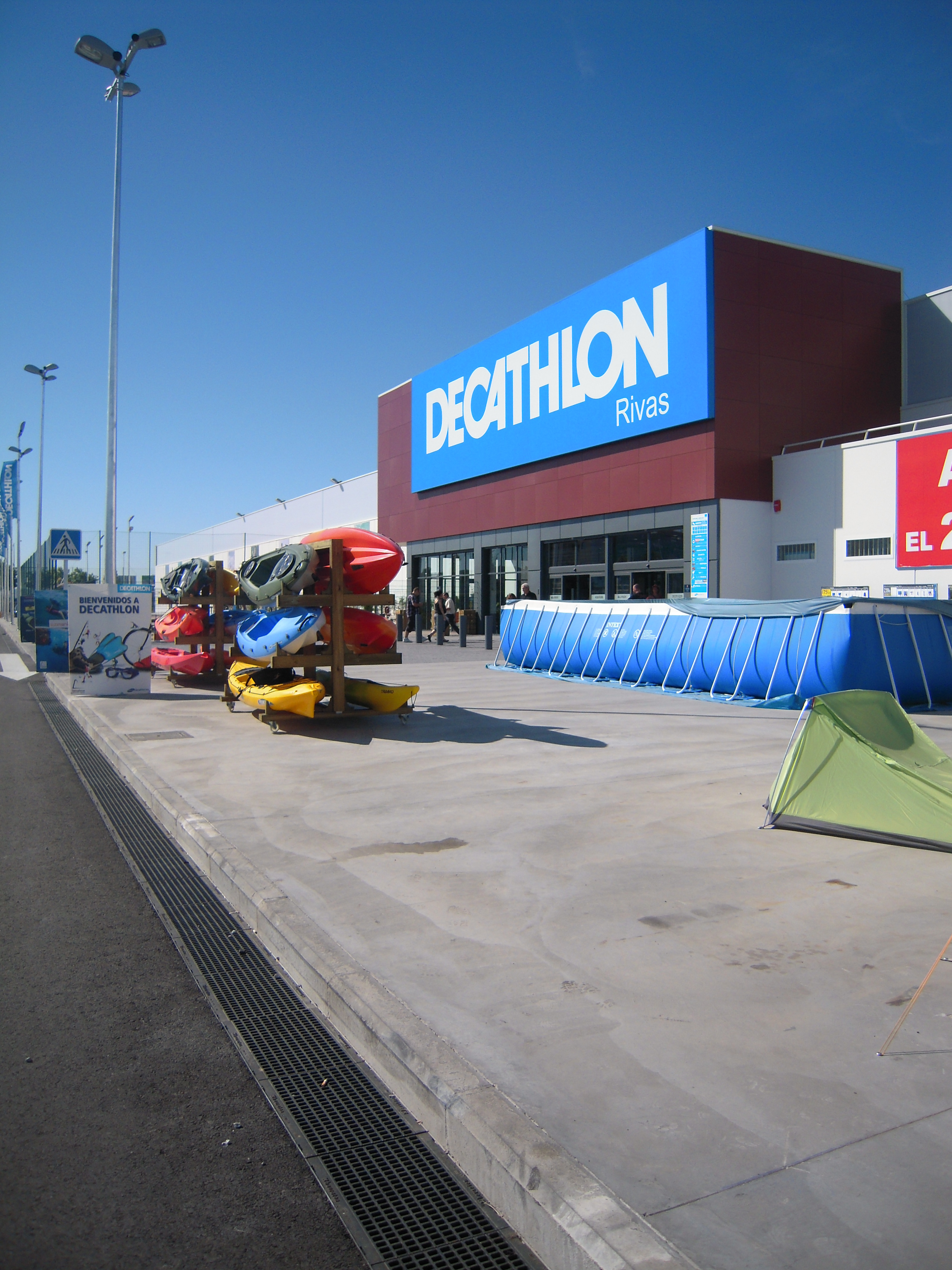

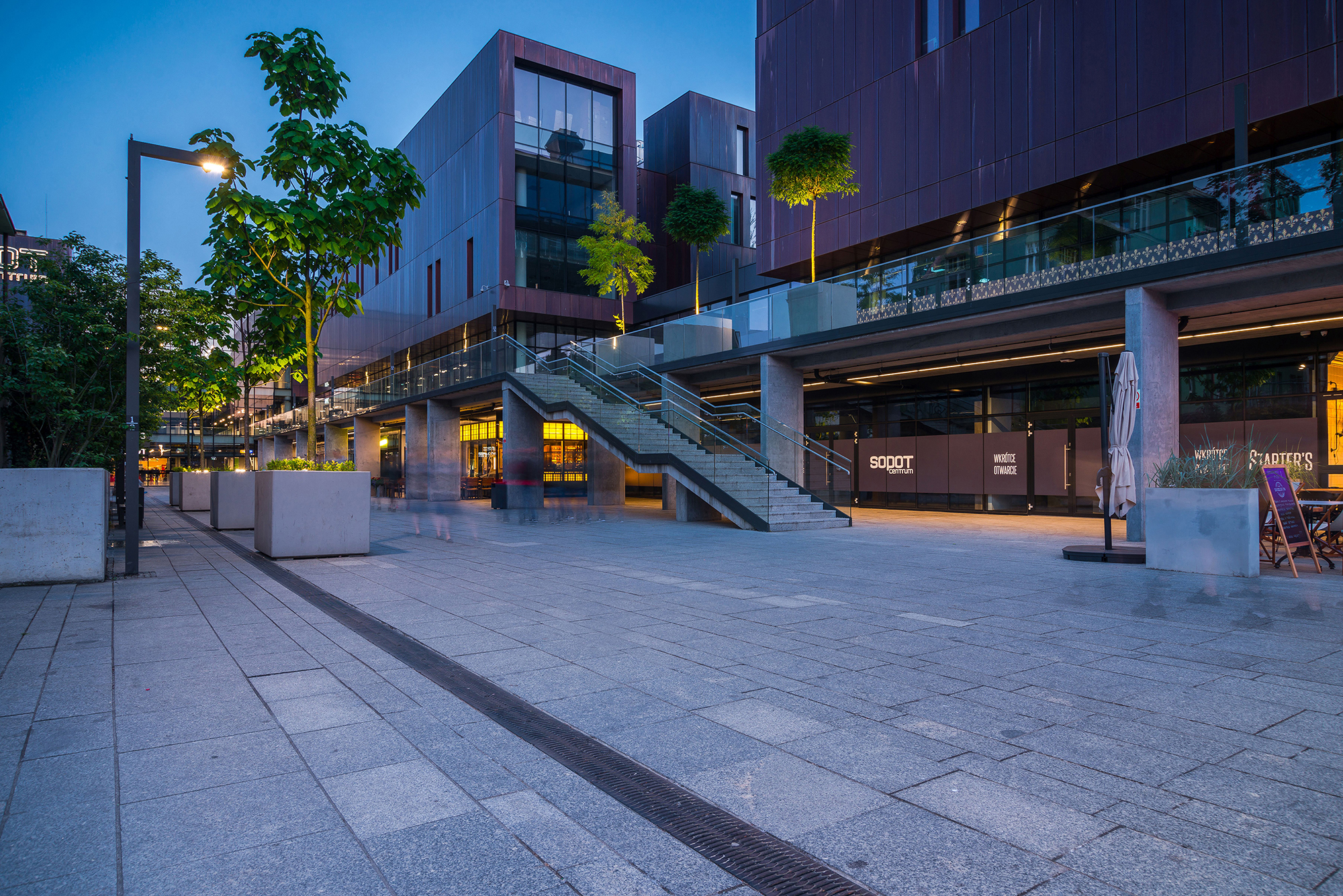

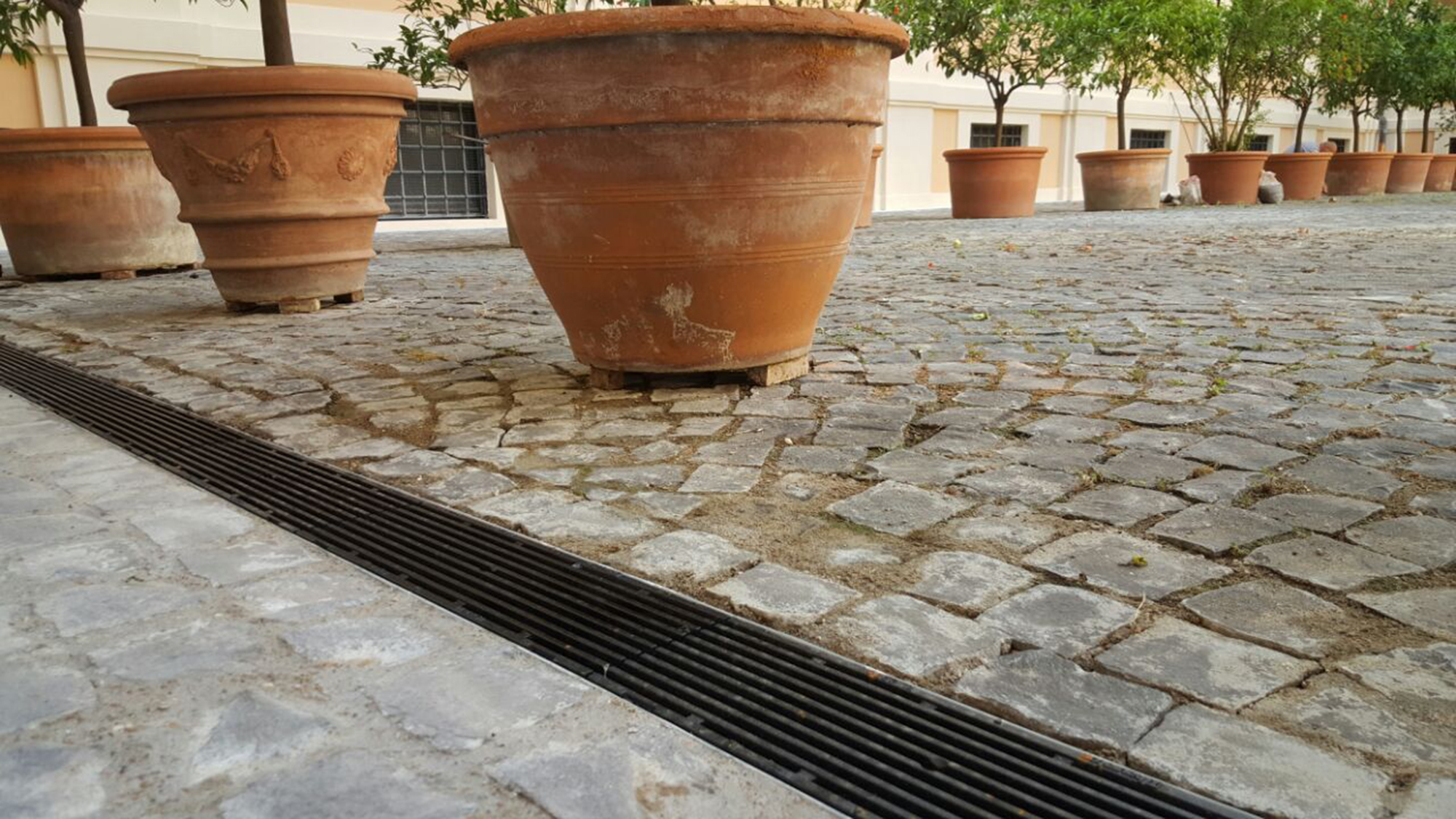

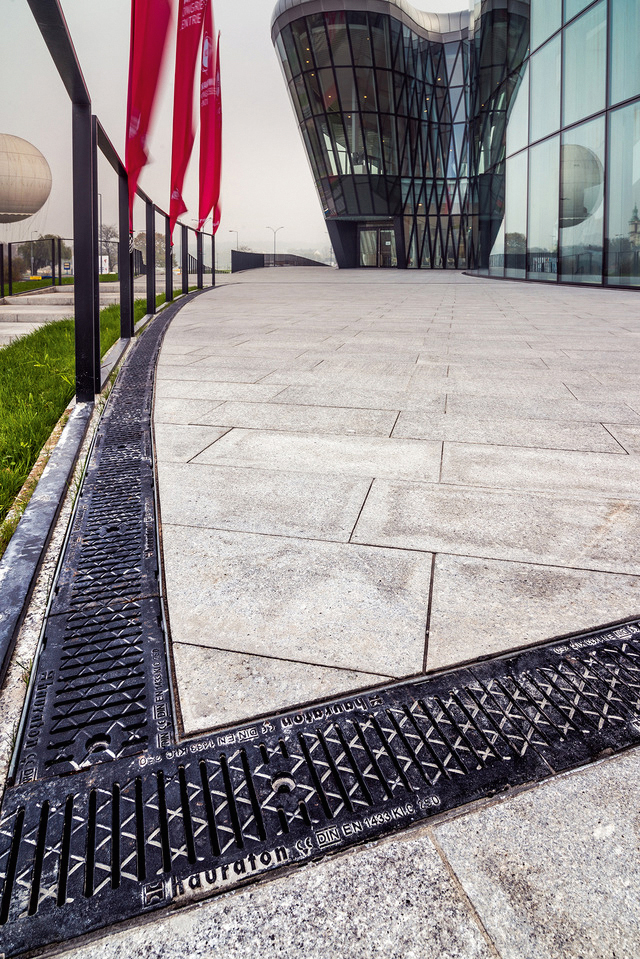

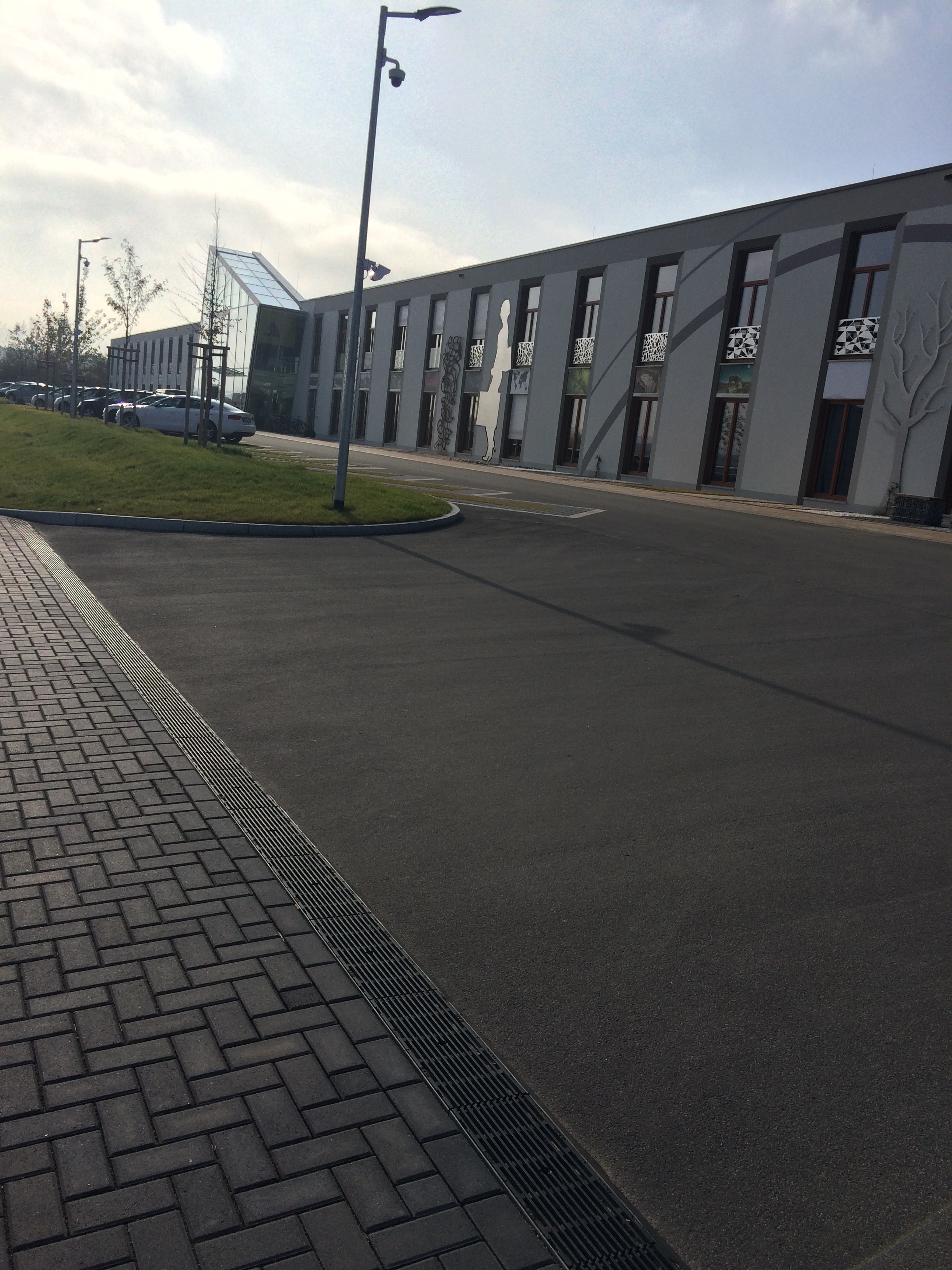

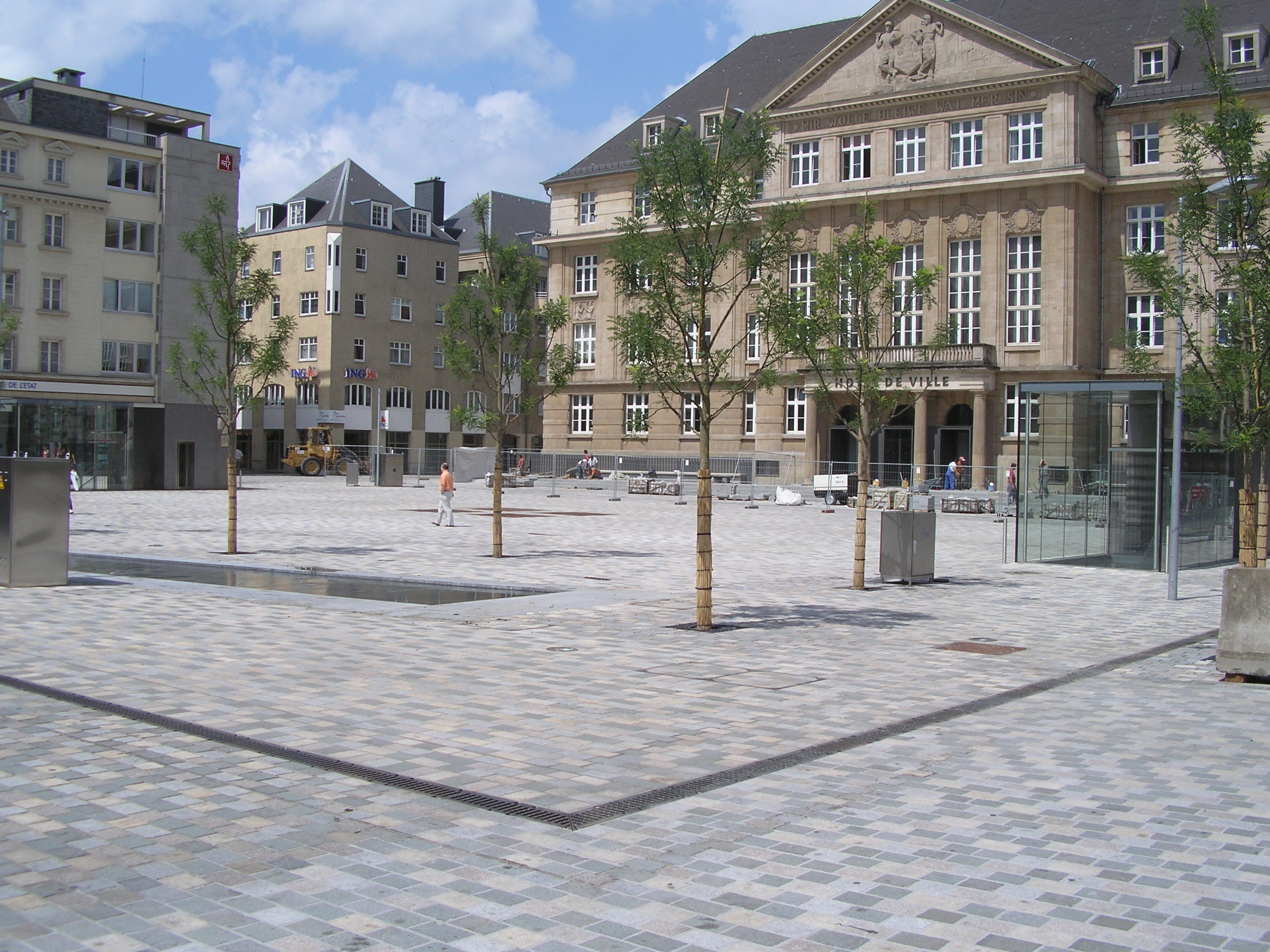

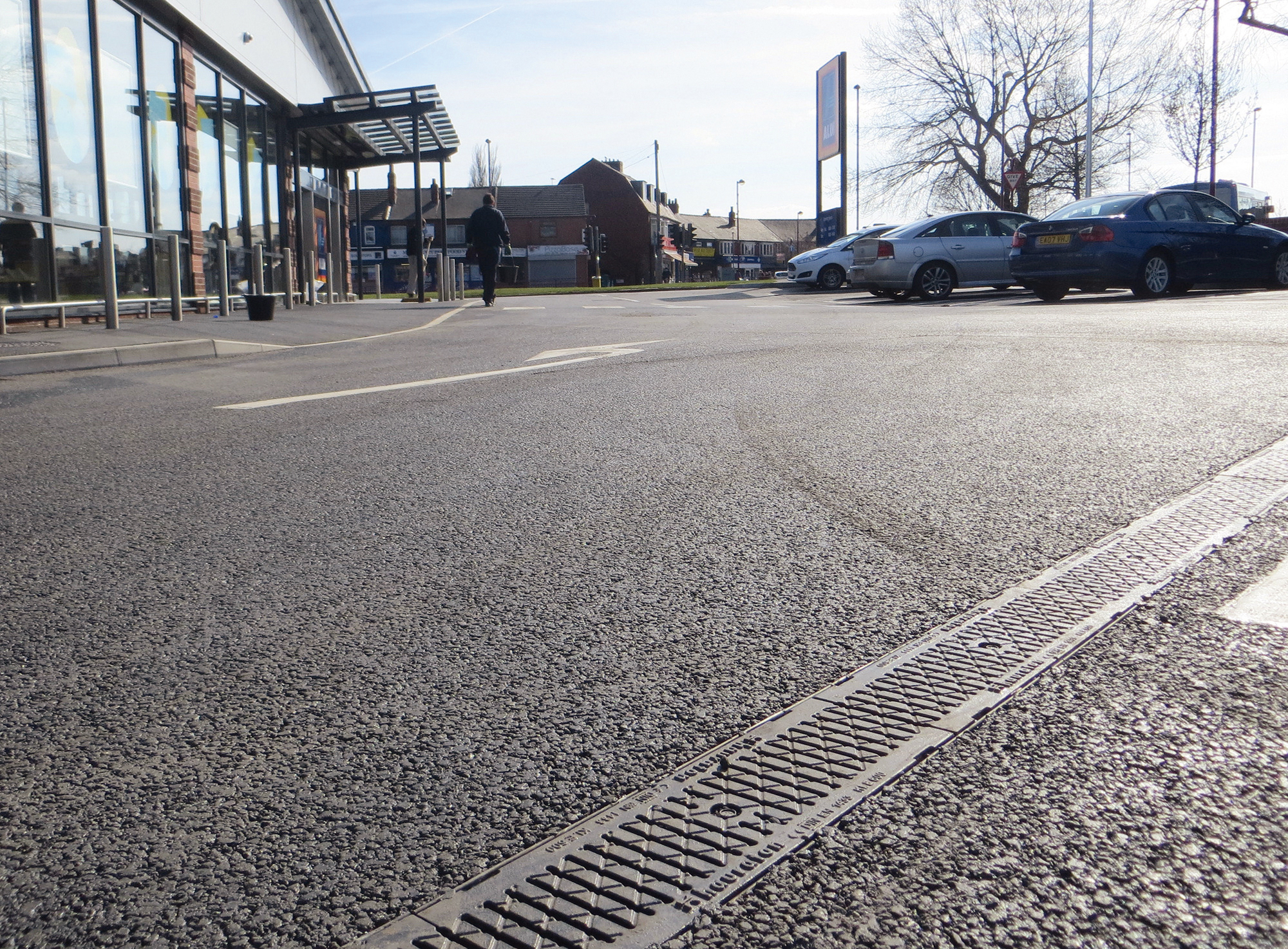

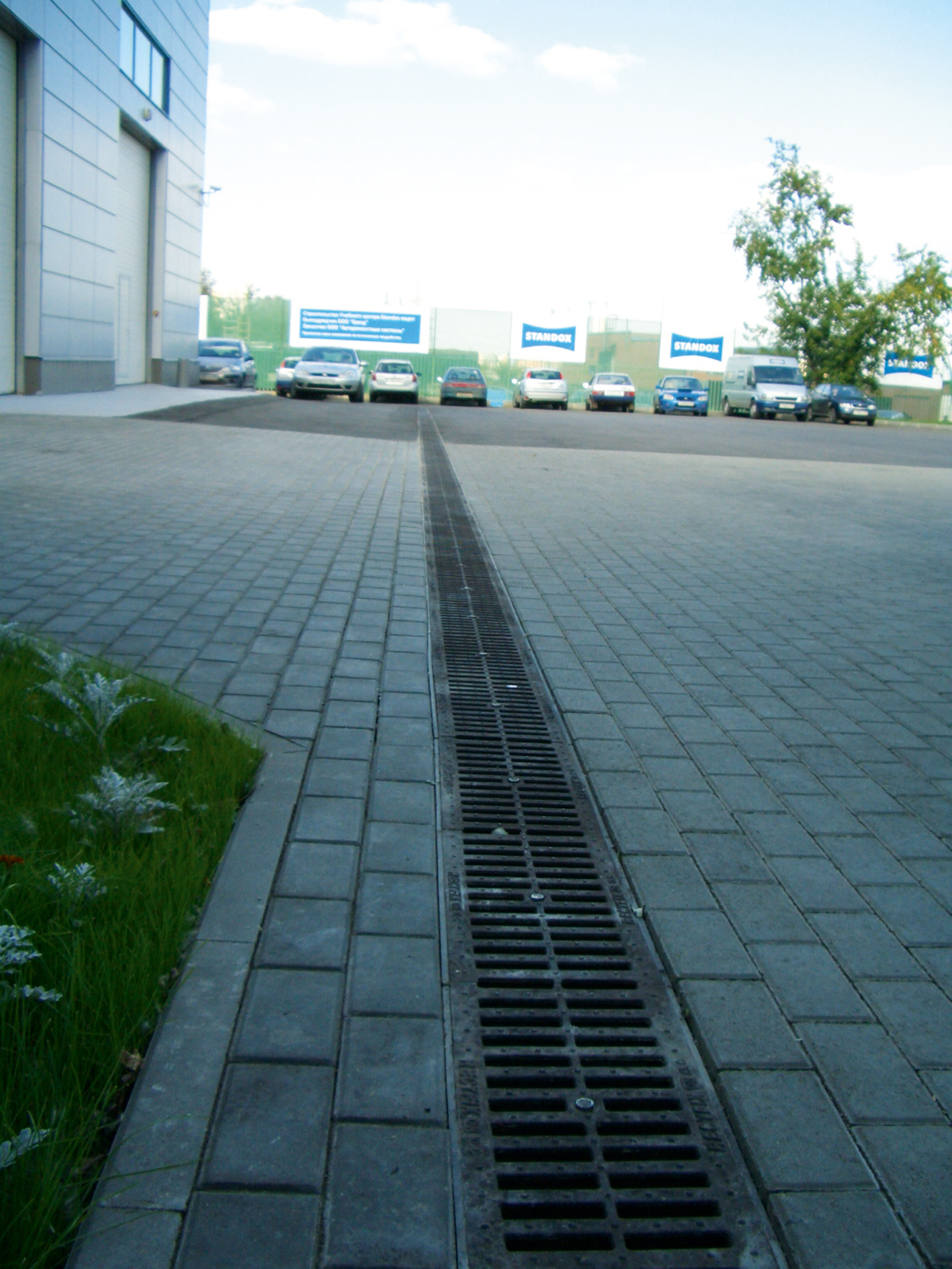

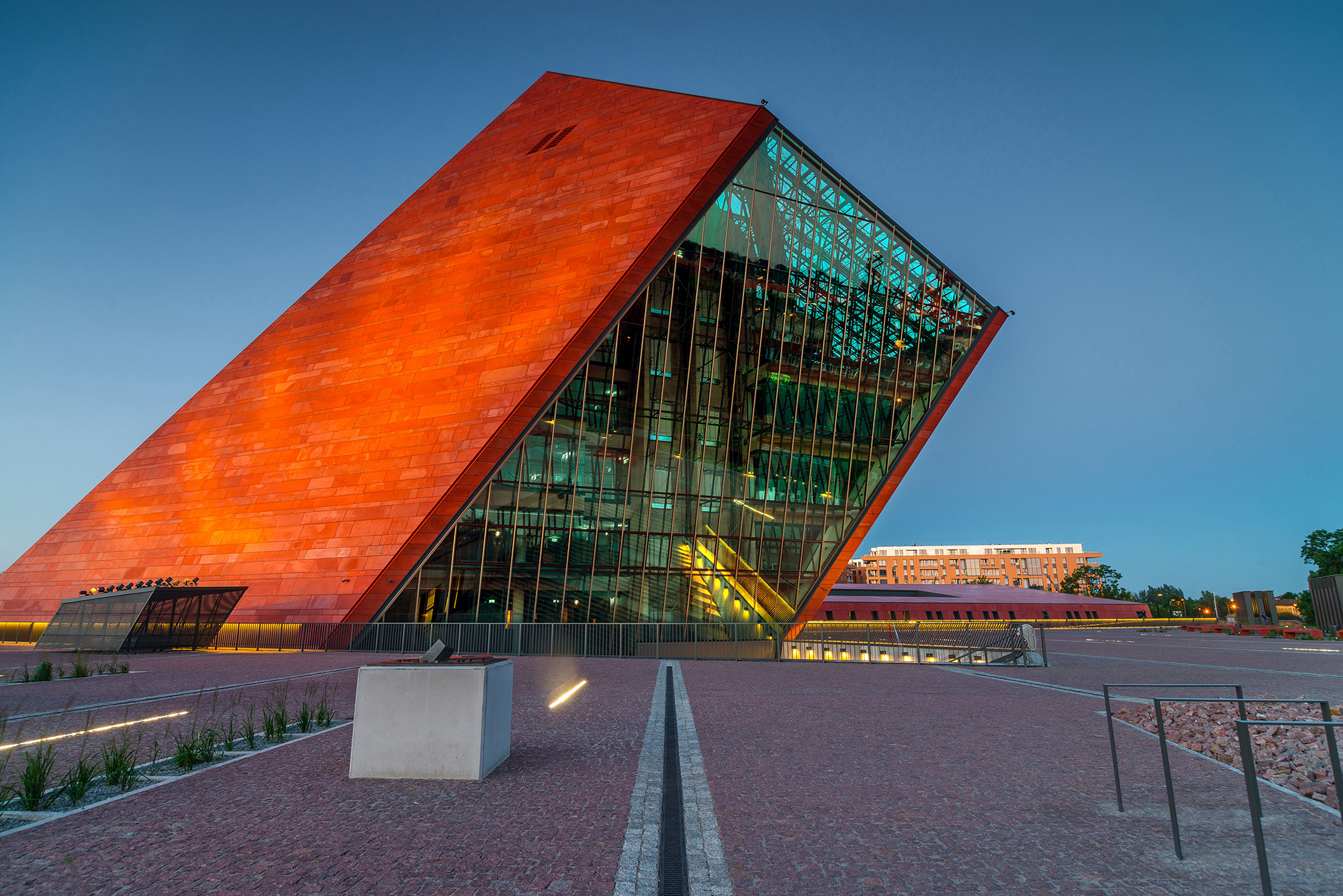

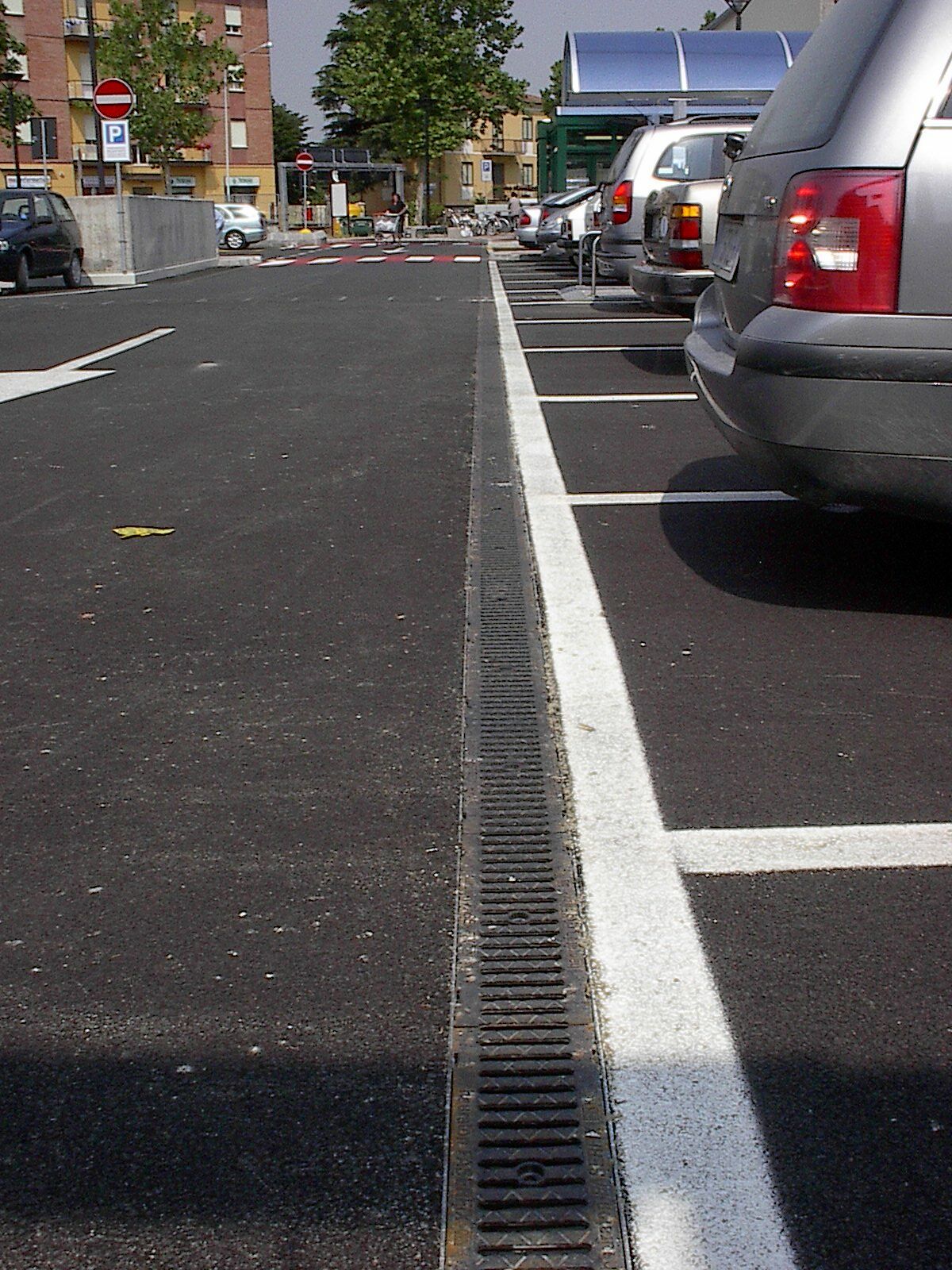

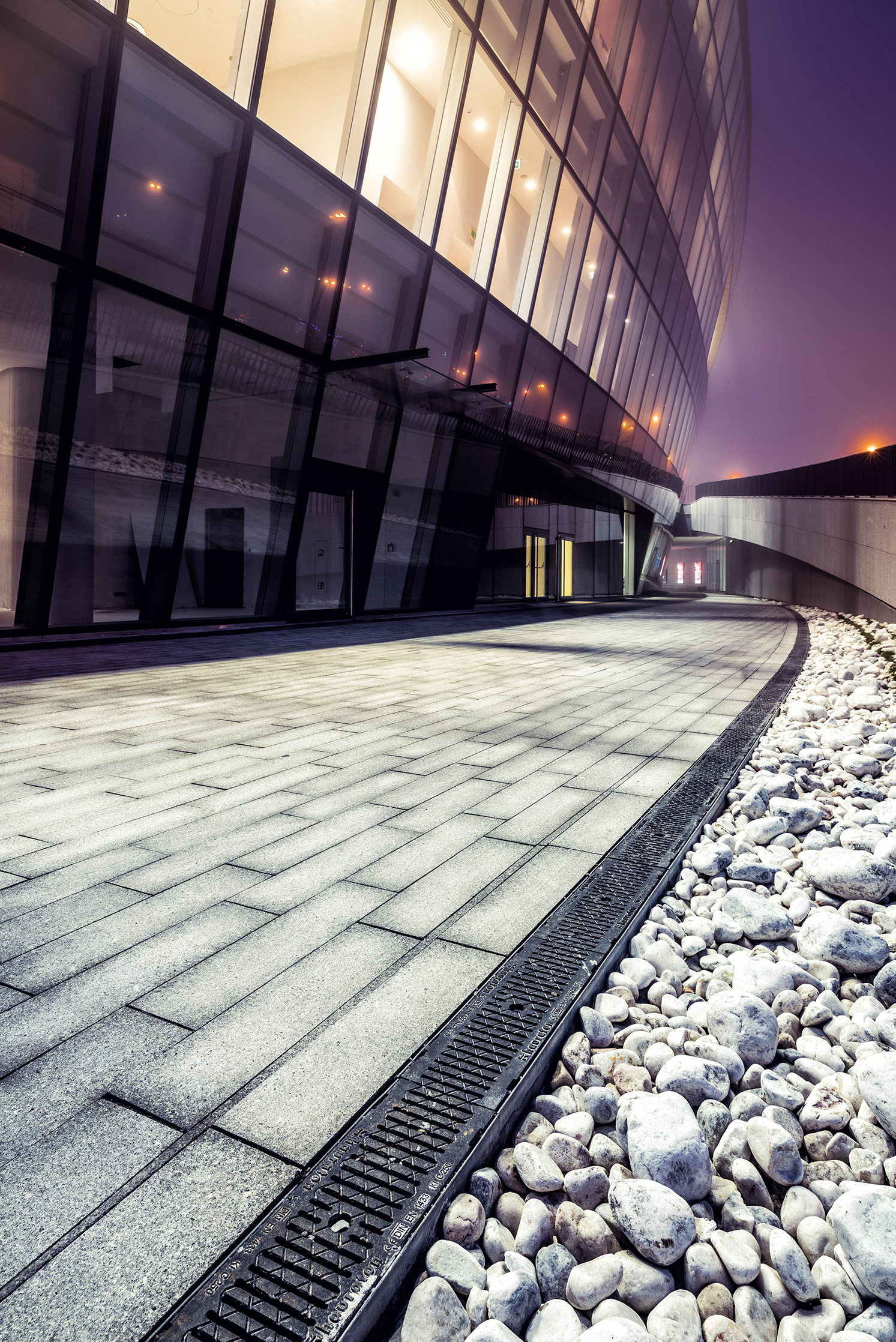

IDEAL FOR: applications with high loads up to class F 900, such as traffic areas for commercial and public areas.
YOUR BENEFITS WITH FASERFIX®KS
HIGH PERFORMANCE ANGLE HOUSING & SIDE-LOCK
- 20 mm x 20 mm angle housing and inlaying grating
- extremely stable connection between steel angle housing and concrete channel body
- 10 fixing points for gratings per metre (incl. 2 times with optional locking handle)
- extra protection against lateral movement
- 90 % time savings in fixing the grating withSIDE-LOCK (compared to a conventional fixing)
- replace and insert the grating without any special tool a screwdriver is enough
= Quality assured | Cost savings
NUMEROUS GRATING OPTIONS
- made of ductile iron , composite, galvanised or stainless steel

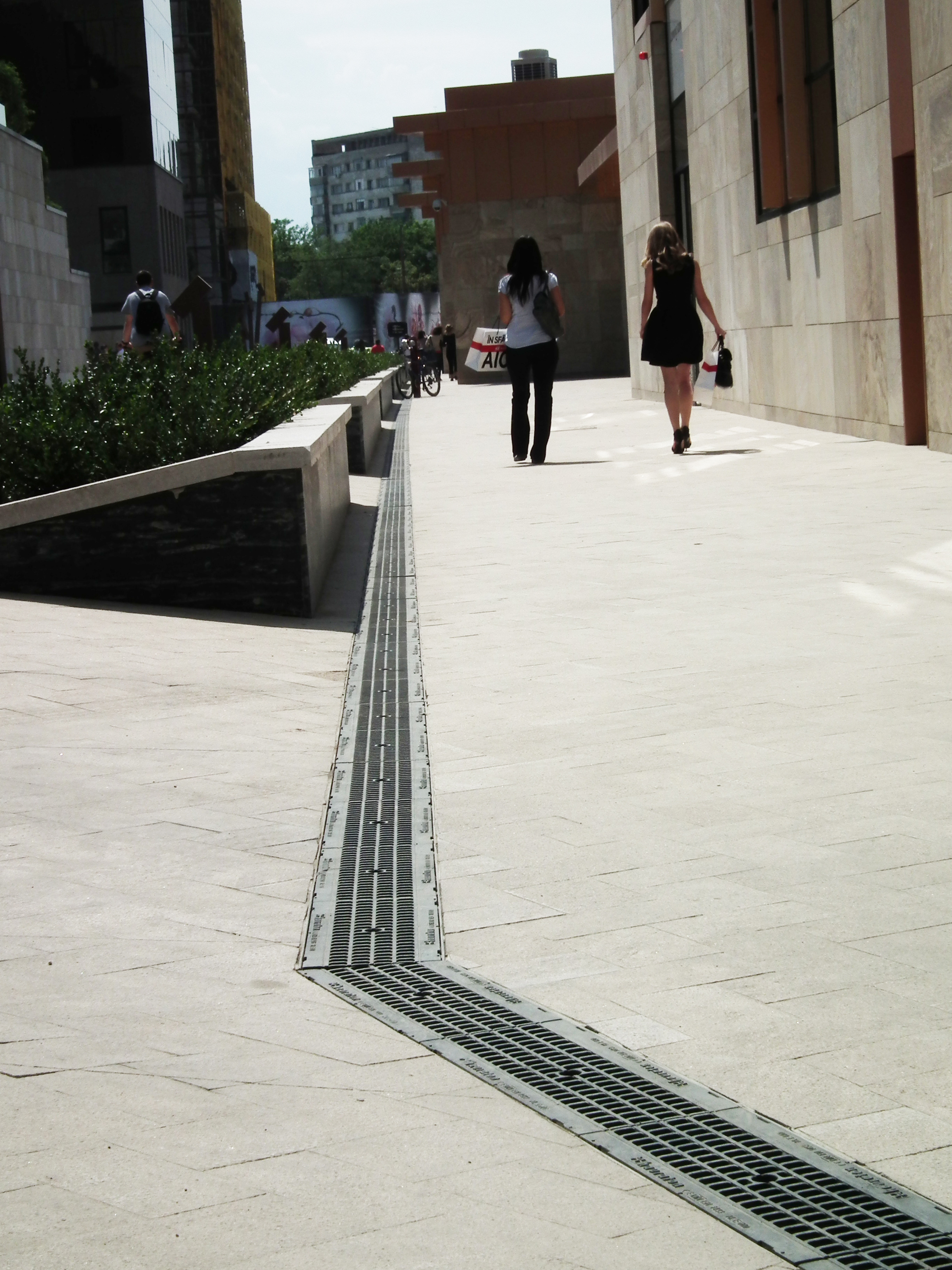

- narrow slot width for pedestrian areas available
= Design Flexibility
HIGH STABILITY
- maximum lateral stability through extra thick walls compared to many competitors‘ products for additional security in extreme situations
- installation for asphalted surface up to class E 600 without concrete stretcher
= Quality assured | Performance assured
HIGH-TECH MATERIAL
- „Made in Germany“
- maximum stability through fibre - reinforced concrete (polypropylene fibres) with low weight
- adheres well to foundation concrete (same coefficient with regard to thermal expansion)
- installation without grating possible
- fire resistance class A1 (not flammable) according to DIN 4102
= Quality assured | Performance assured

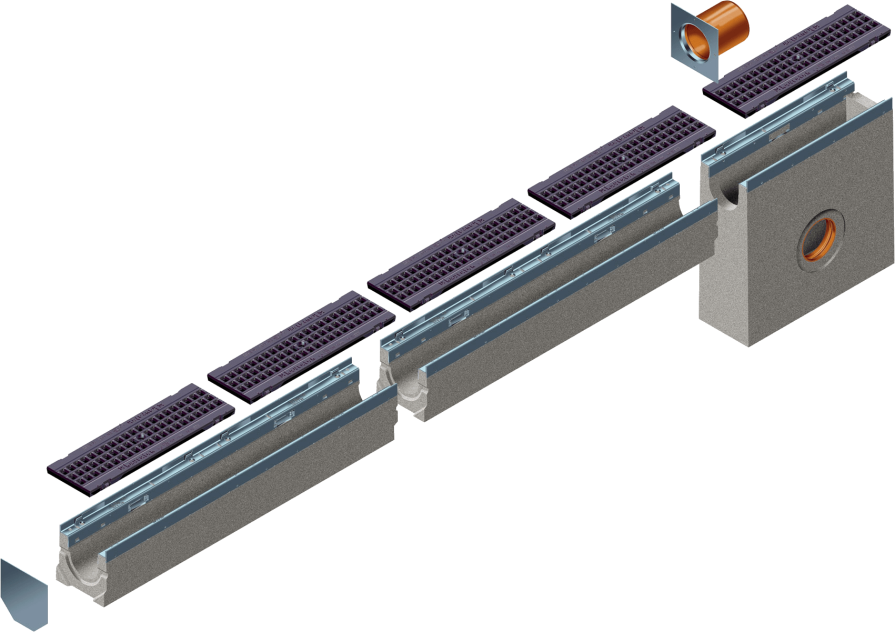

THE SYSTEM IN DETAIL

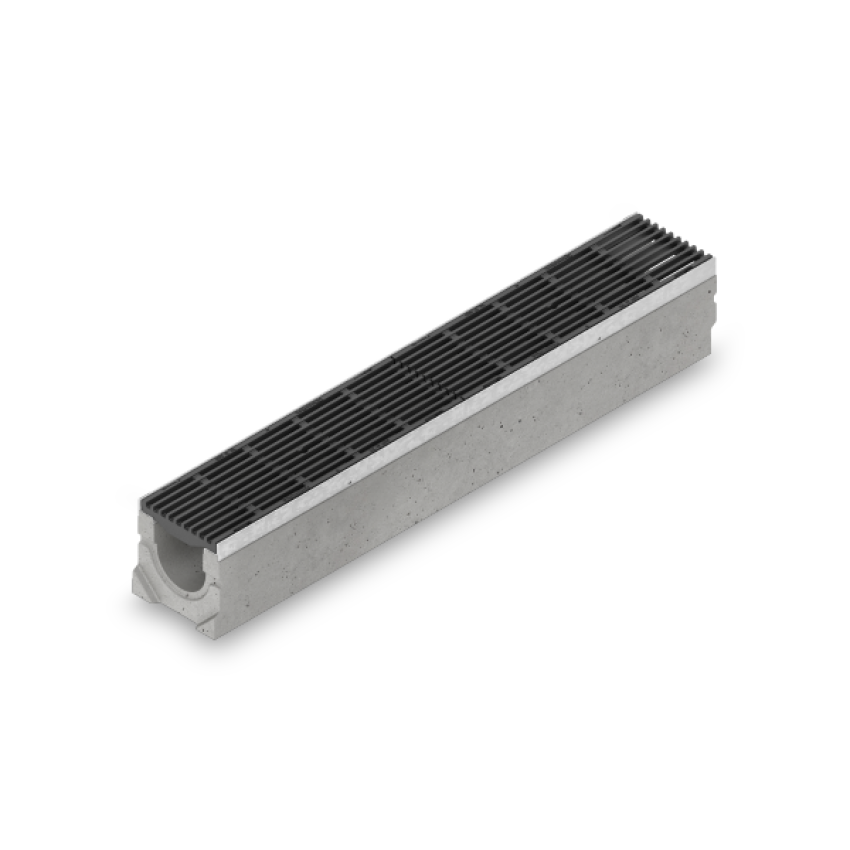

Latakai, pagaminti iš pluoštu armuoto betono, remiantis DIN V 19580 / EN 1433 reikalavimais, atitinka CE, su plieno briaunomis ir bevaržte grotelių fiksavimo sistema SIDE-LOCK, "liežuvėlio ir įpjovos jungtis" užtikrina tikslų montavimą
įvairios grotelių galimybės, pavyzdžiui GUGI kalaus ketaus tinklinės grotelės
Įtekėjimo dėžė su pajungimo galimybe iš trijų pusių, integruota vamzdžio mova DN 100 ir perkeliamu nešvarumų indu
Galinė sienelė su pajungimo galimybe
Galinė sienelė su pajungimo galimybe
