FASERFIX SUPER drainage system | heavy traffic loads

IDEAL FOR: applications with heavy loads and high dynamic forces up to class F 900, such as traffic areas for industry, roads and petrol stations.
%s


YOUR BENEFITS WITH FASERFIX SUPER

HIGH PERFORMANCE ANGLE HOUSING AND SIDE-LOCK

= Quality assured | Cost savings
SHOW DETAILS

HIGH PERFORMANCE ANGLE HOUSING AND SIDE-LOCK

  • 40 mm x 40 mm angle housing and inlaying grating
  • extremely stable connection between steel angle housing and concrete channel body
  • 16 fixing points for gratings per metre (incl. 8 times with optional bolting)
  • extra protection against lateral movement
  • 90 % time savings in fixing the grating with SIDE-LOCK (compared to a conventional fixing)
  • replace and insert the grating without any special tool (if unbolted), a screwdriver is enough
= Quality assured | Cost savings

HIGH-TECH MATERIAL

= Quality assured | Performance assured
SHOW DETAILS

HIGH-TECH MATERIAL

  • „Made in Germany“
  • maximum stability through fibre - reinforced concrete (polypropylene fibres) with low weight
  • adheres well to foundation concrete (same coefficient with regard to thermal expansion)
  • installation without grating possible
  • fire resistance class A1 (not flammable) according to DIN 4102
= Quality assured | Performance assured


HIGH STABILITY

= Performance assured
SHOW DETAILS

HIGH STABILITY

  • maximum lateral stability through extra thick walls compared to many competitors‘ products for additional security in extreme situations
  • installation for asphalted surface up to class E 600 without concrete stretcher
= Performance assured

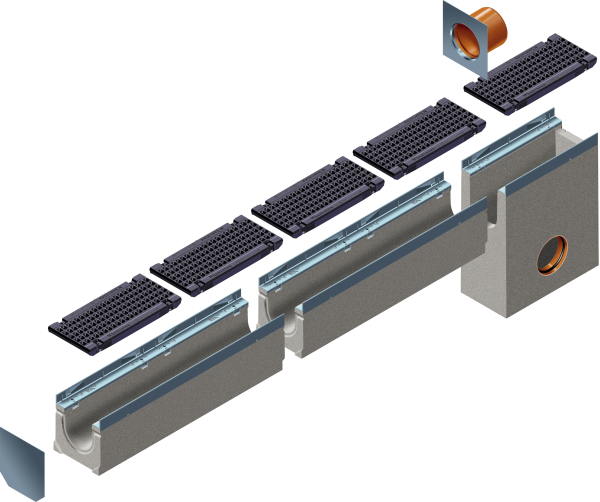

THE SYSTEM IN DETAIL

%s
Latakai, pagaminti iš pluoštu armuoto betono, remiantis DIN V 19580 / EN 1433 reikalavimais, atitinka CE, su plieno briaunomis ir bevaržte grotelių fiksavimo sistema SIDE-LOCK, "liežuvėlio ir įpjovos jungtis" užtikrina tikslų montavimą
įvairios grotelių galimybės, pavyzdžiui GUGI kalaus ketaus tinklinės grotelės
Įtekėjimo dėžė su pajungimo galimybe iš trijų pusių, integruota vamzdžio mova DN 100 ir perkeliamu nešvarumų indu
Galinė sienelė su pajungimo galimybe
Galinė sienelė su pajungimo galimybe

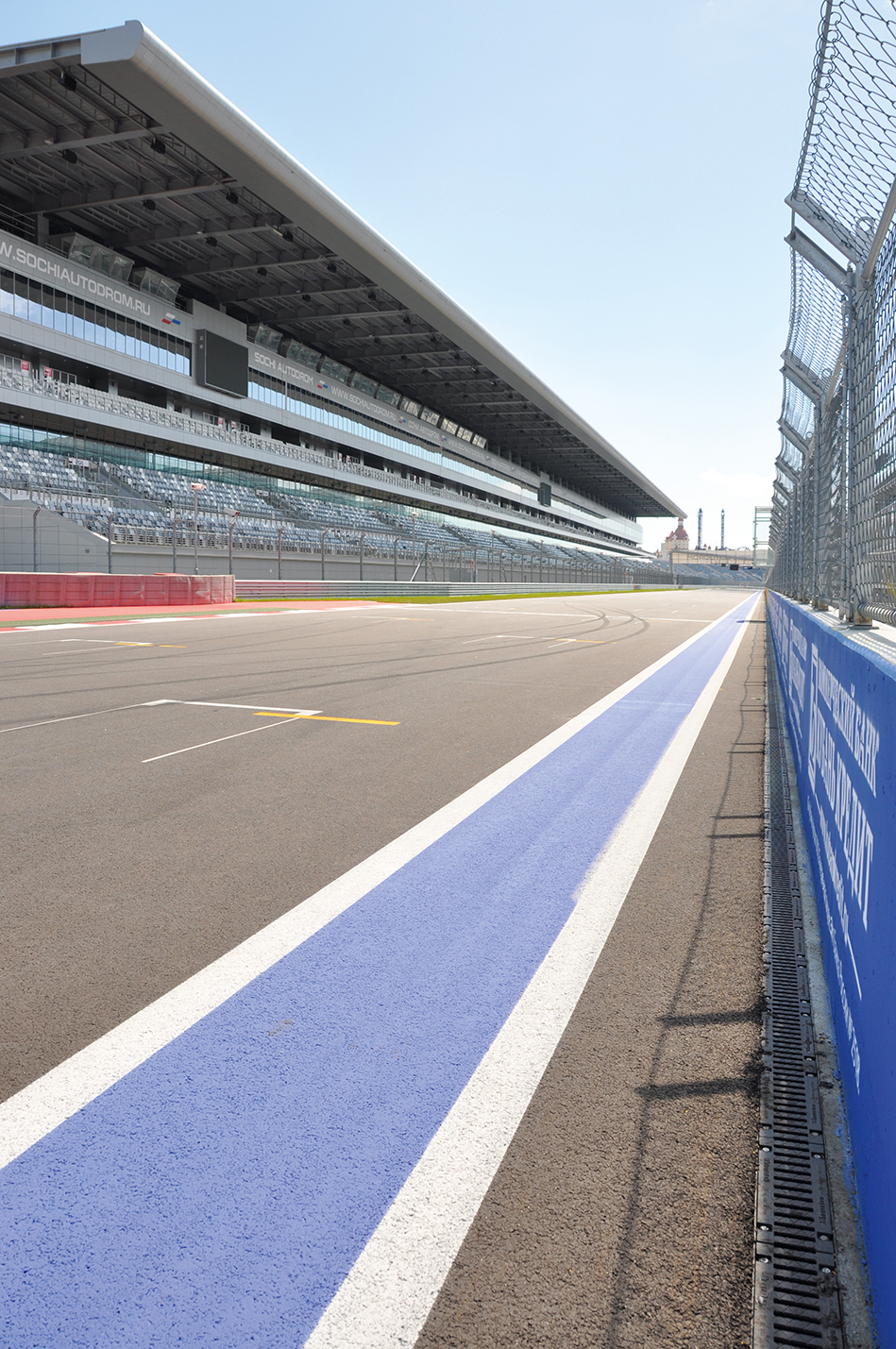

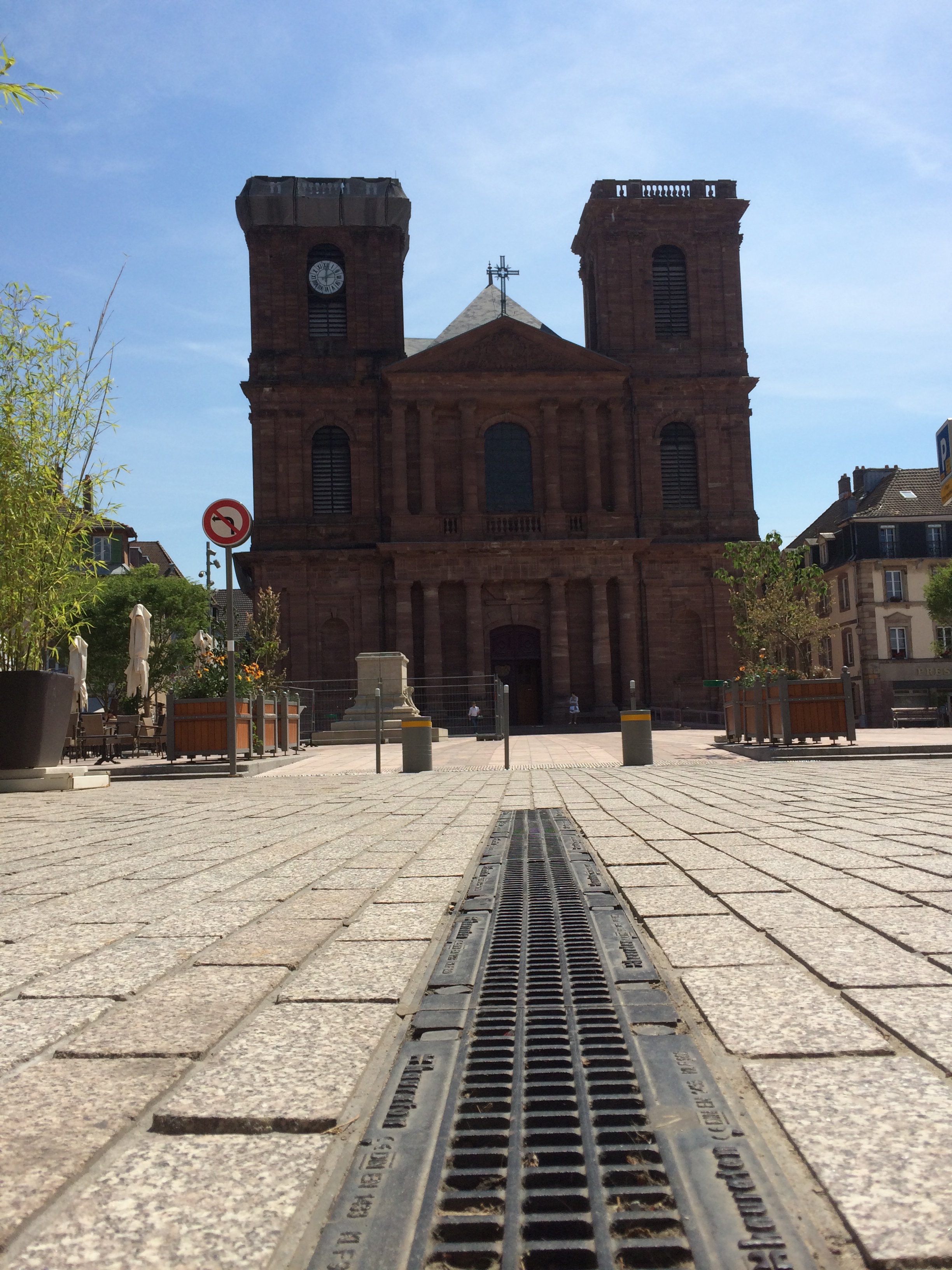

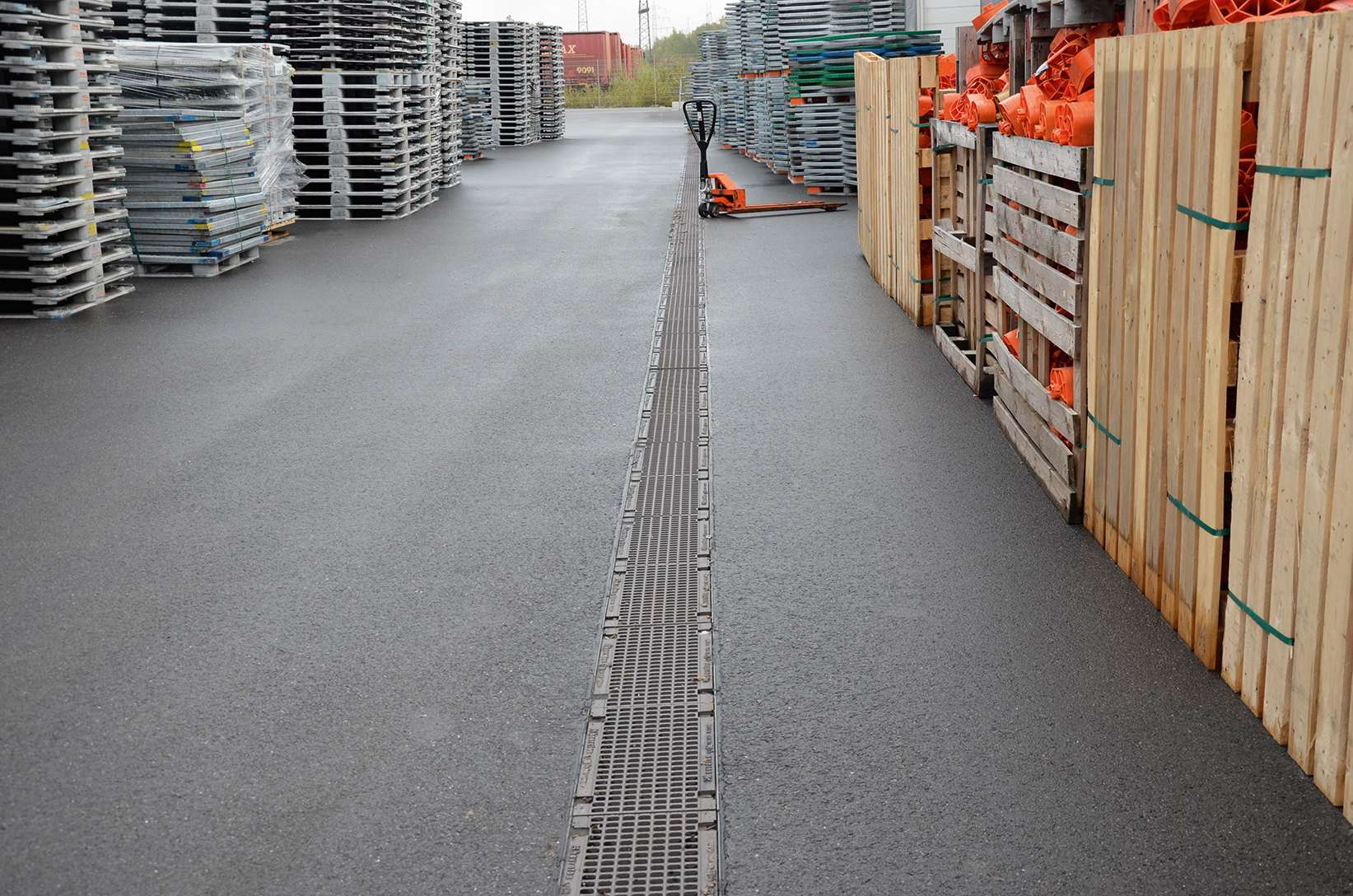

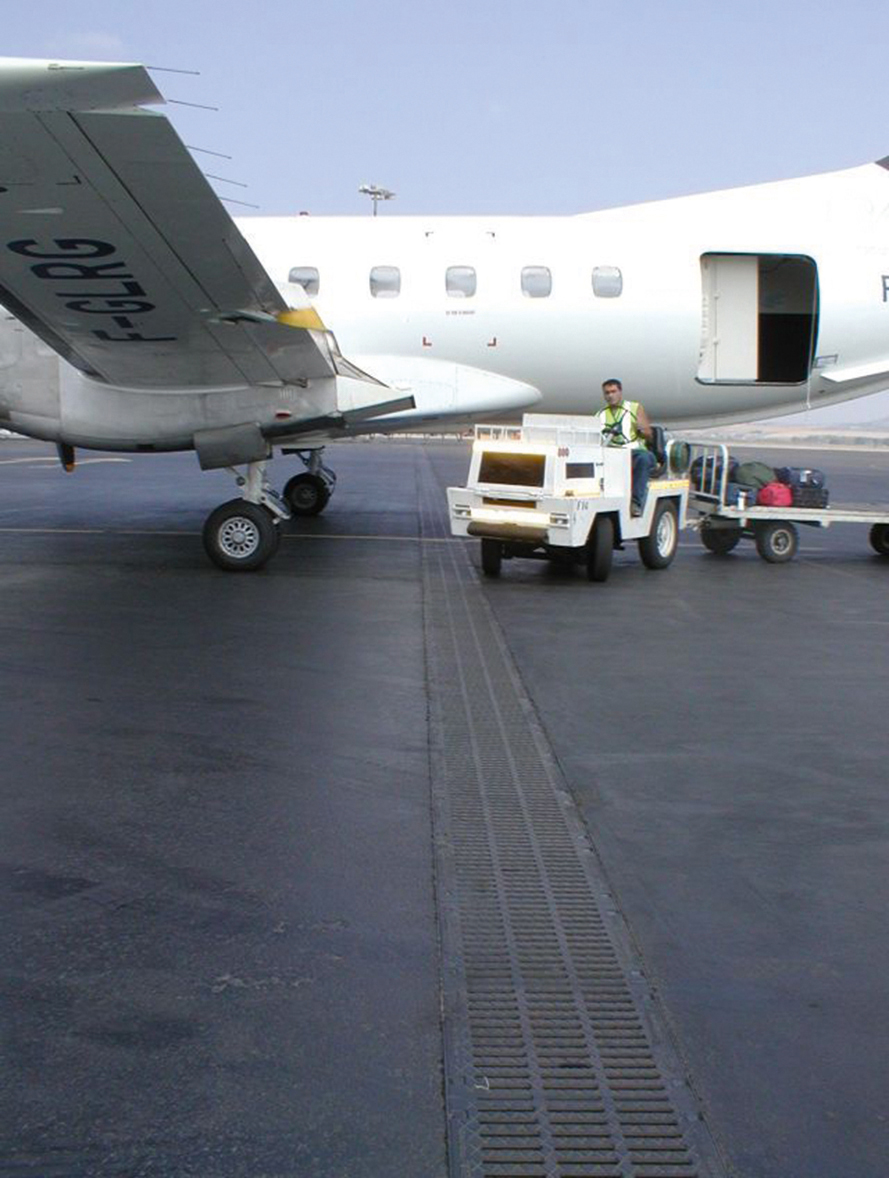

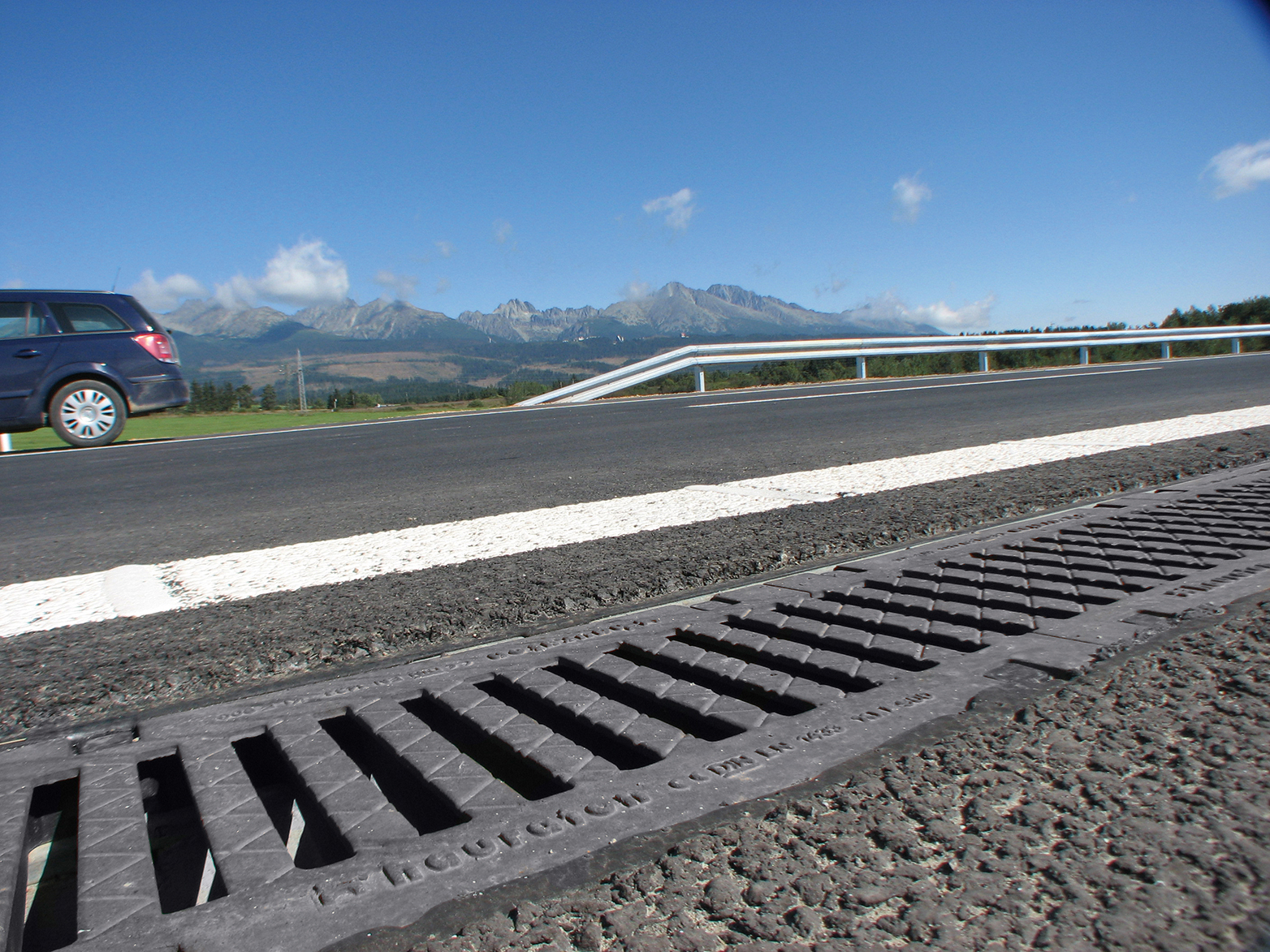

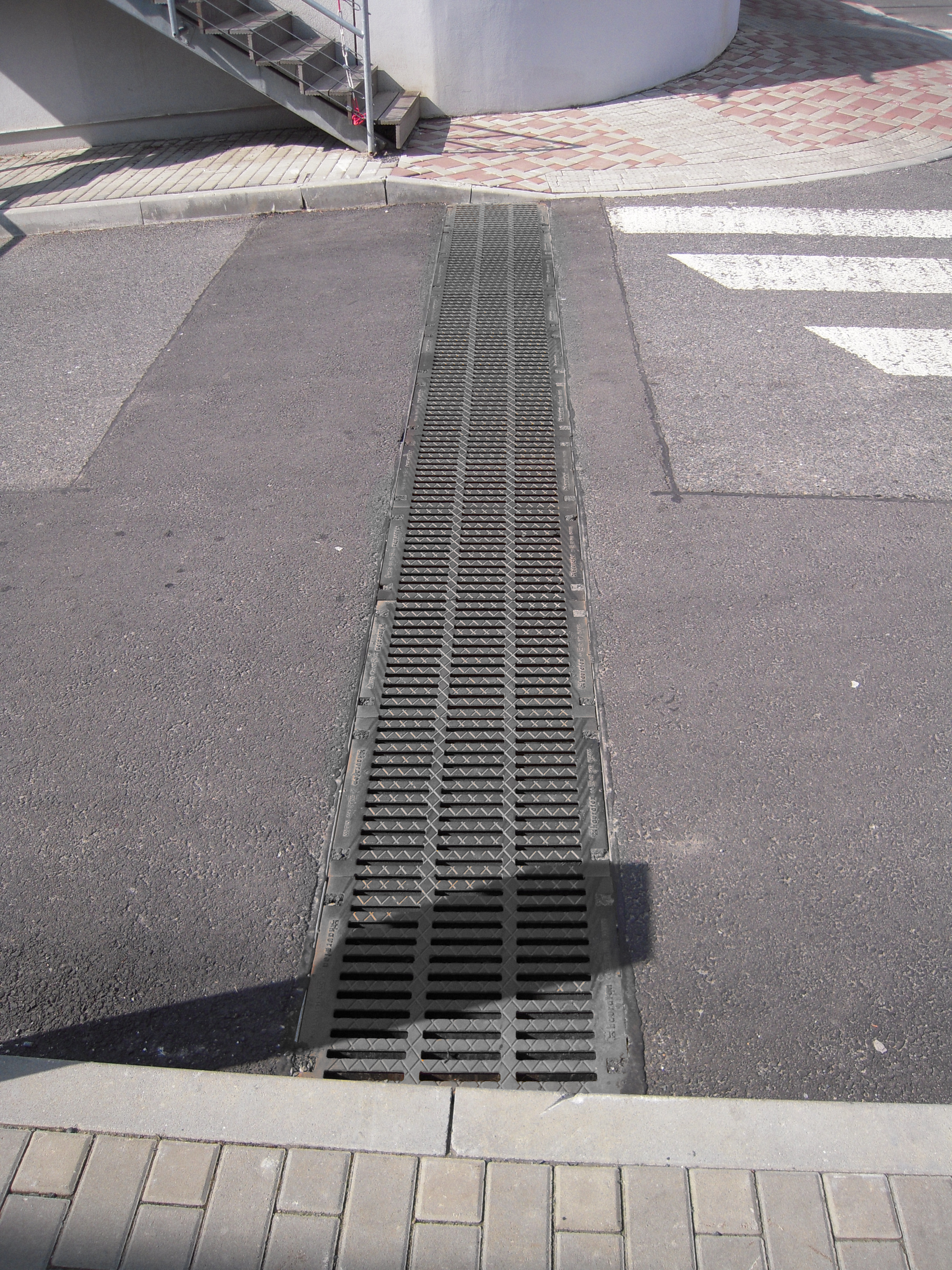

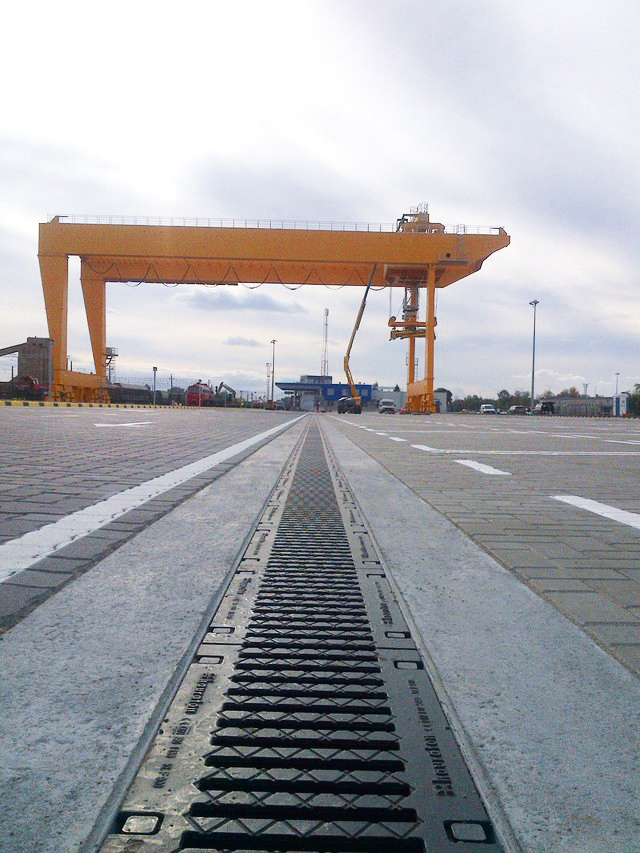

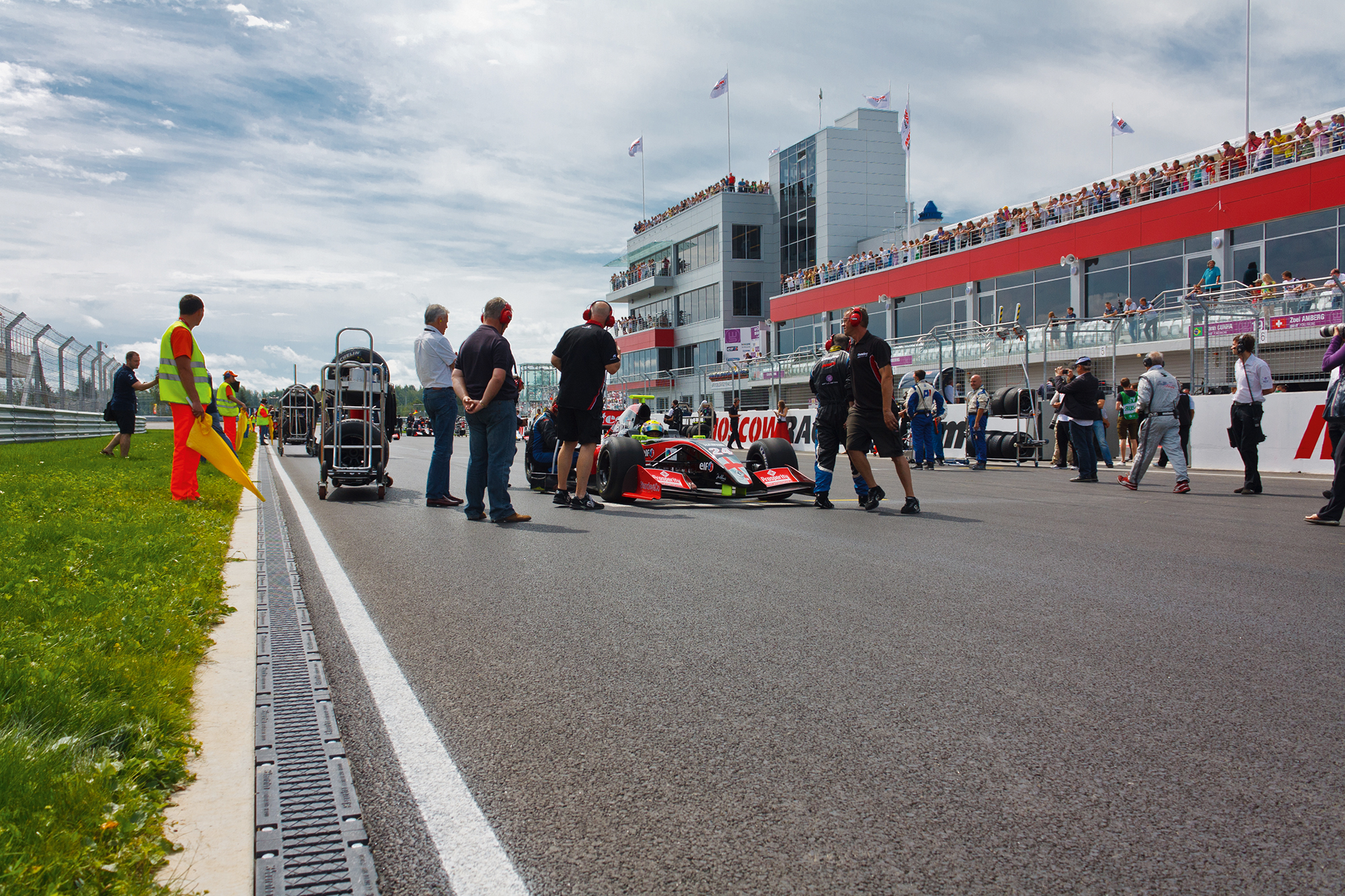

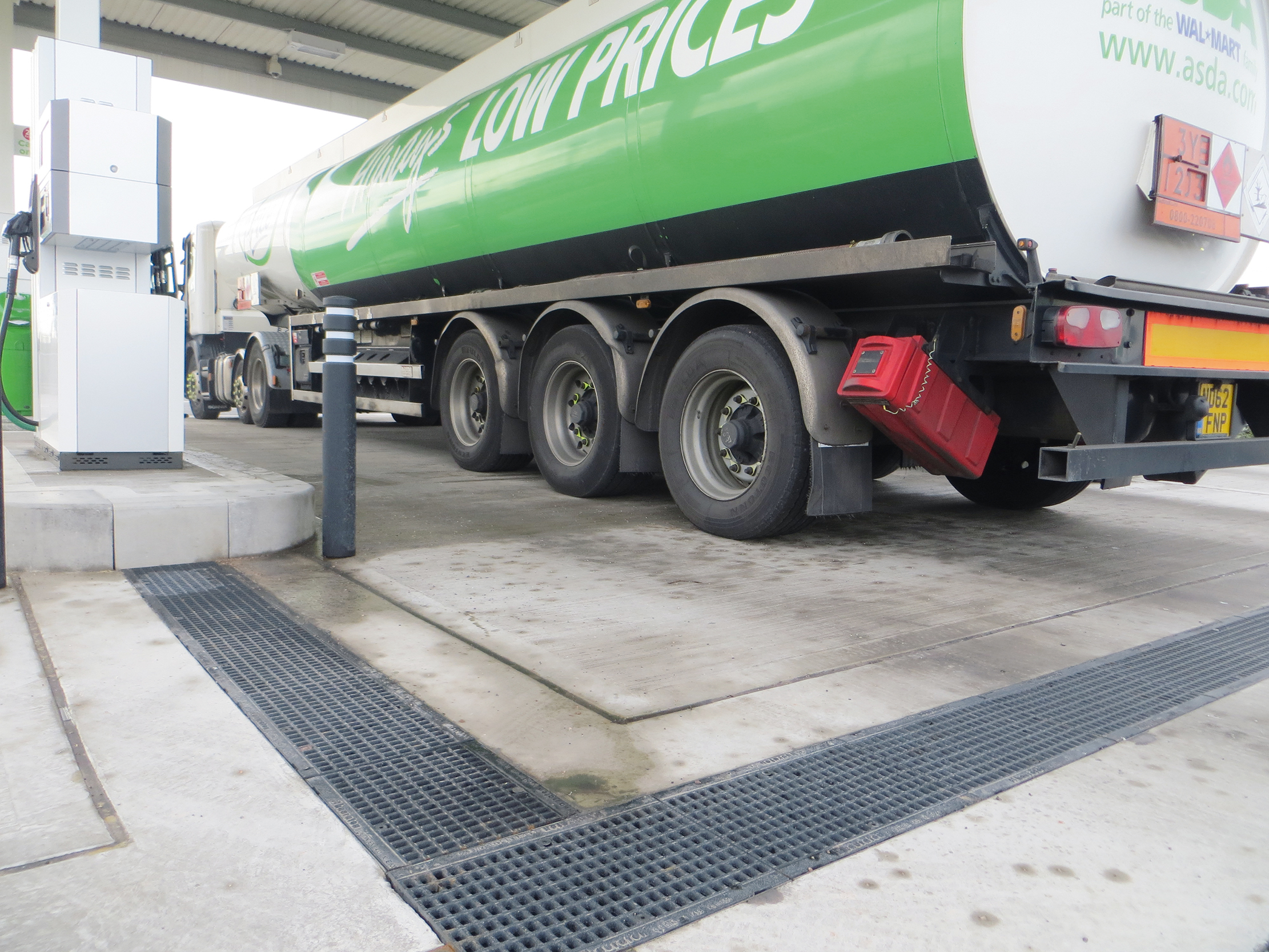

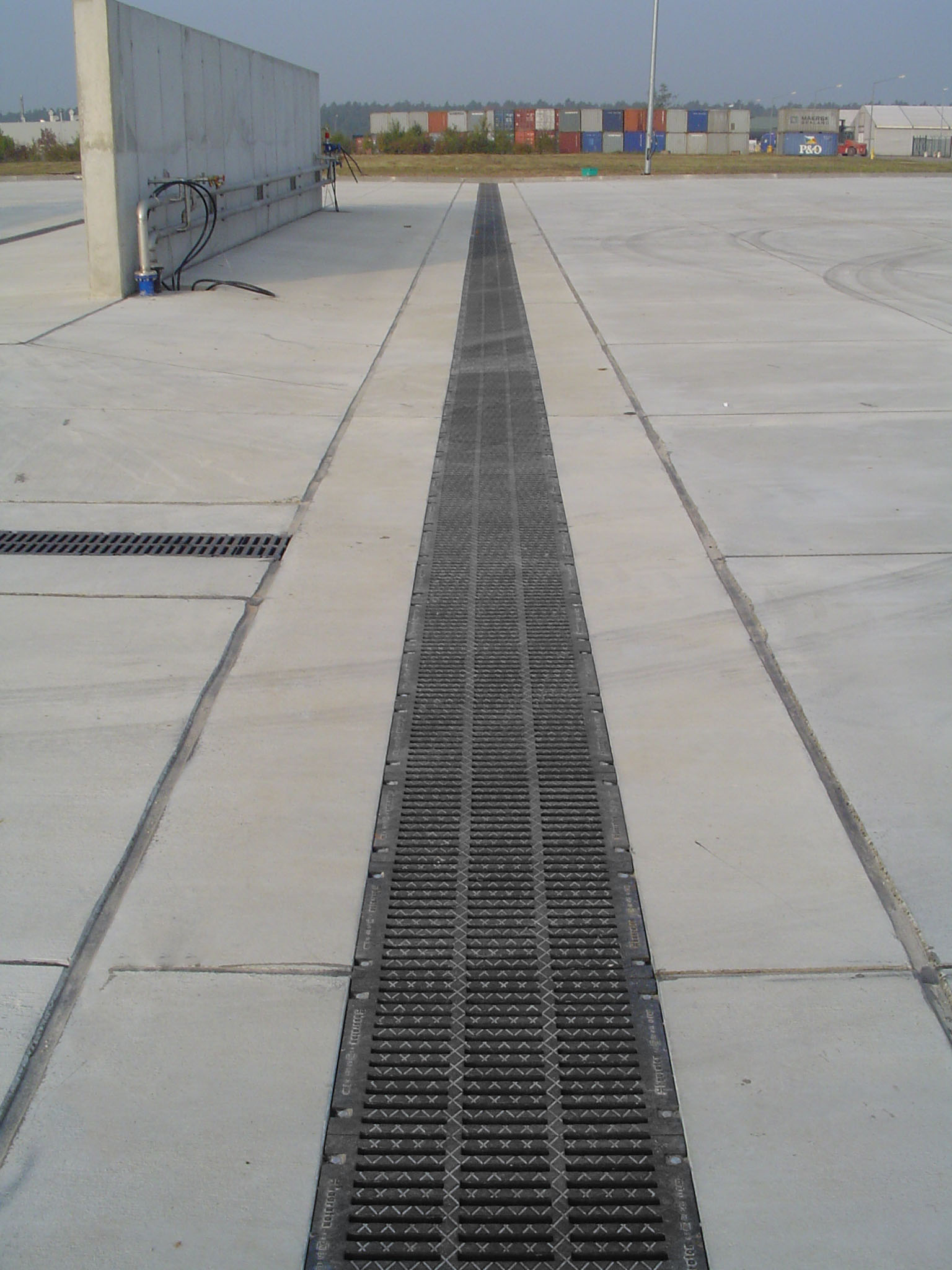

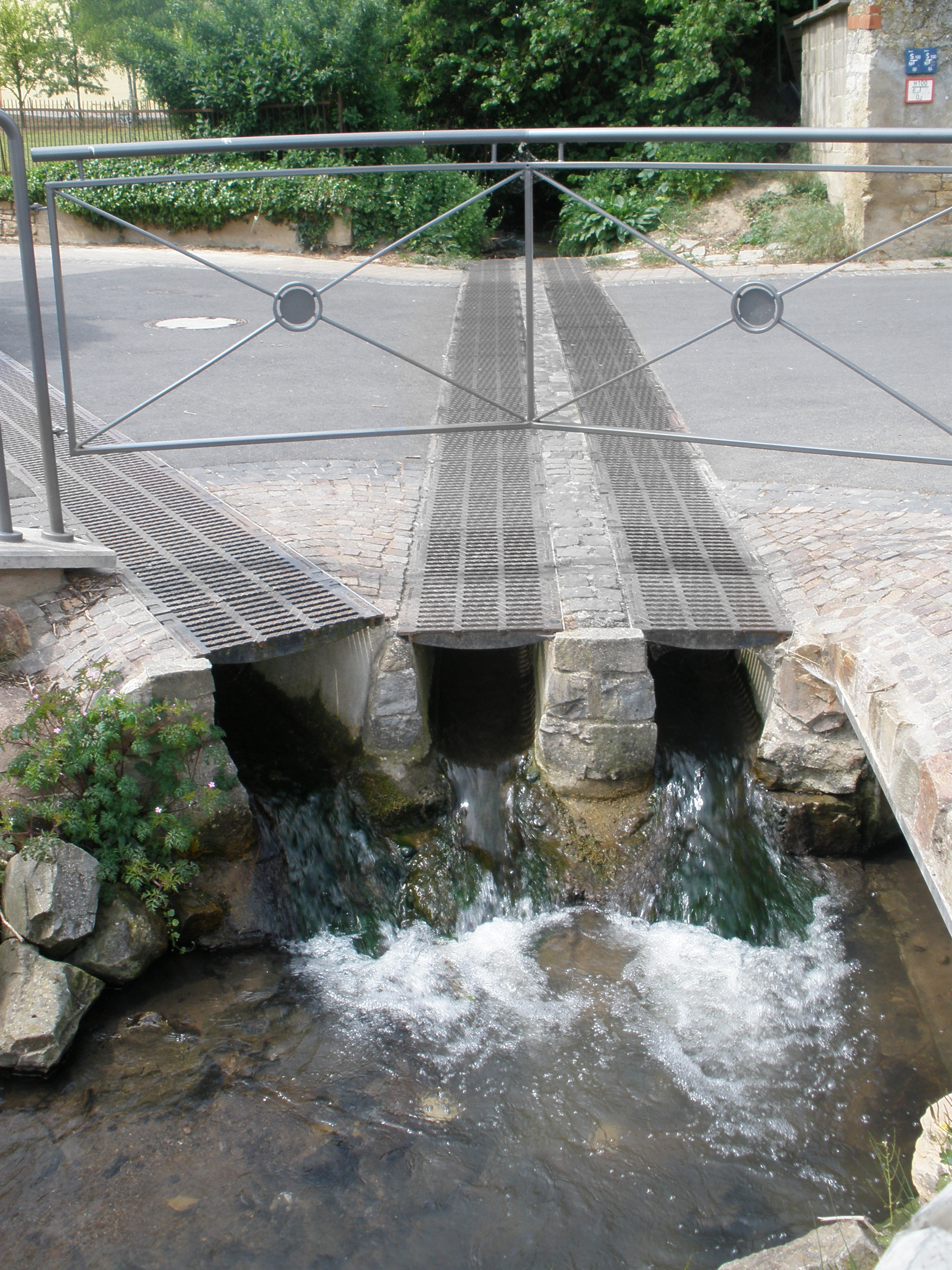

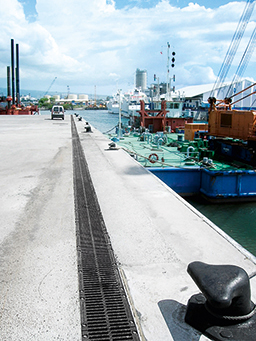

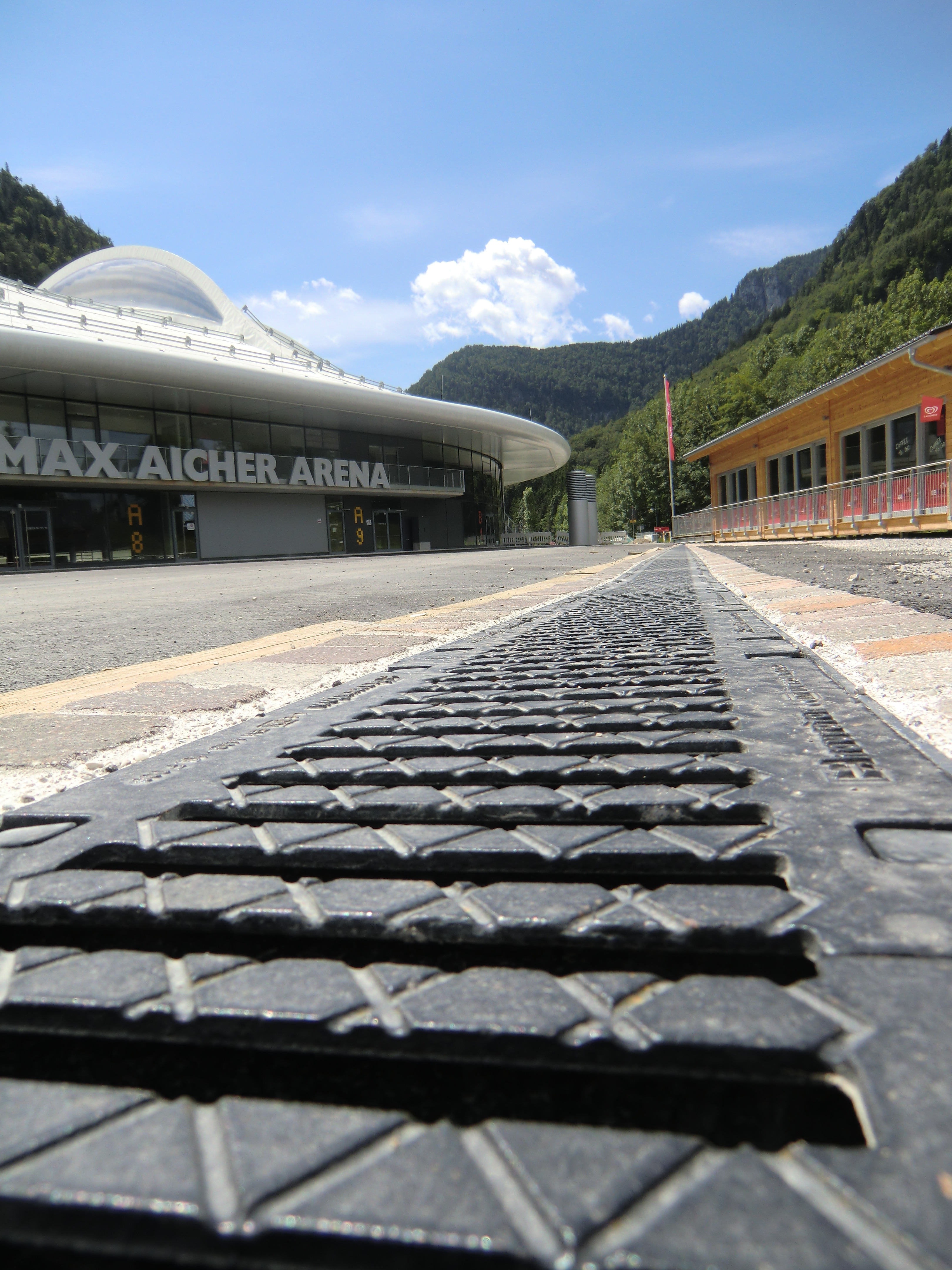

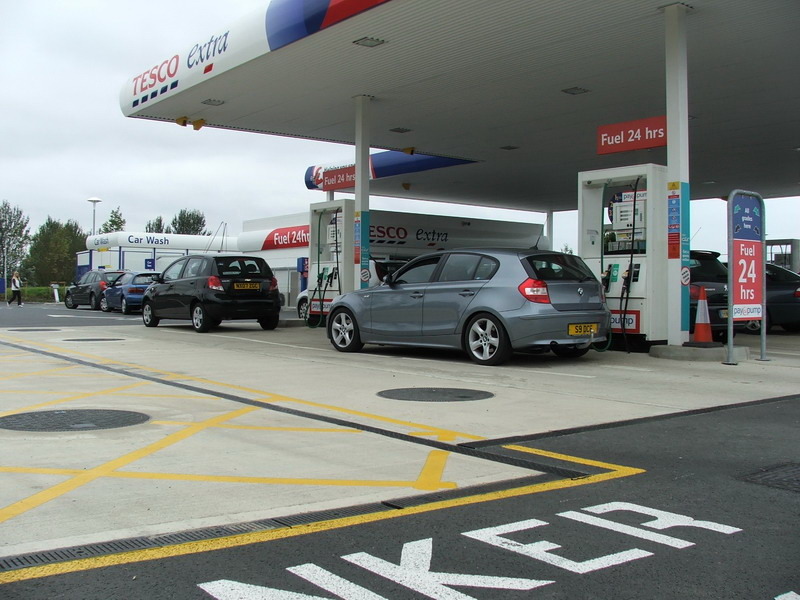

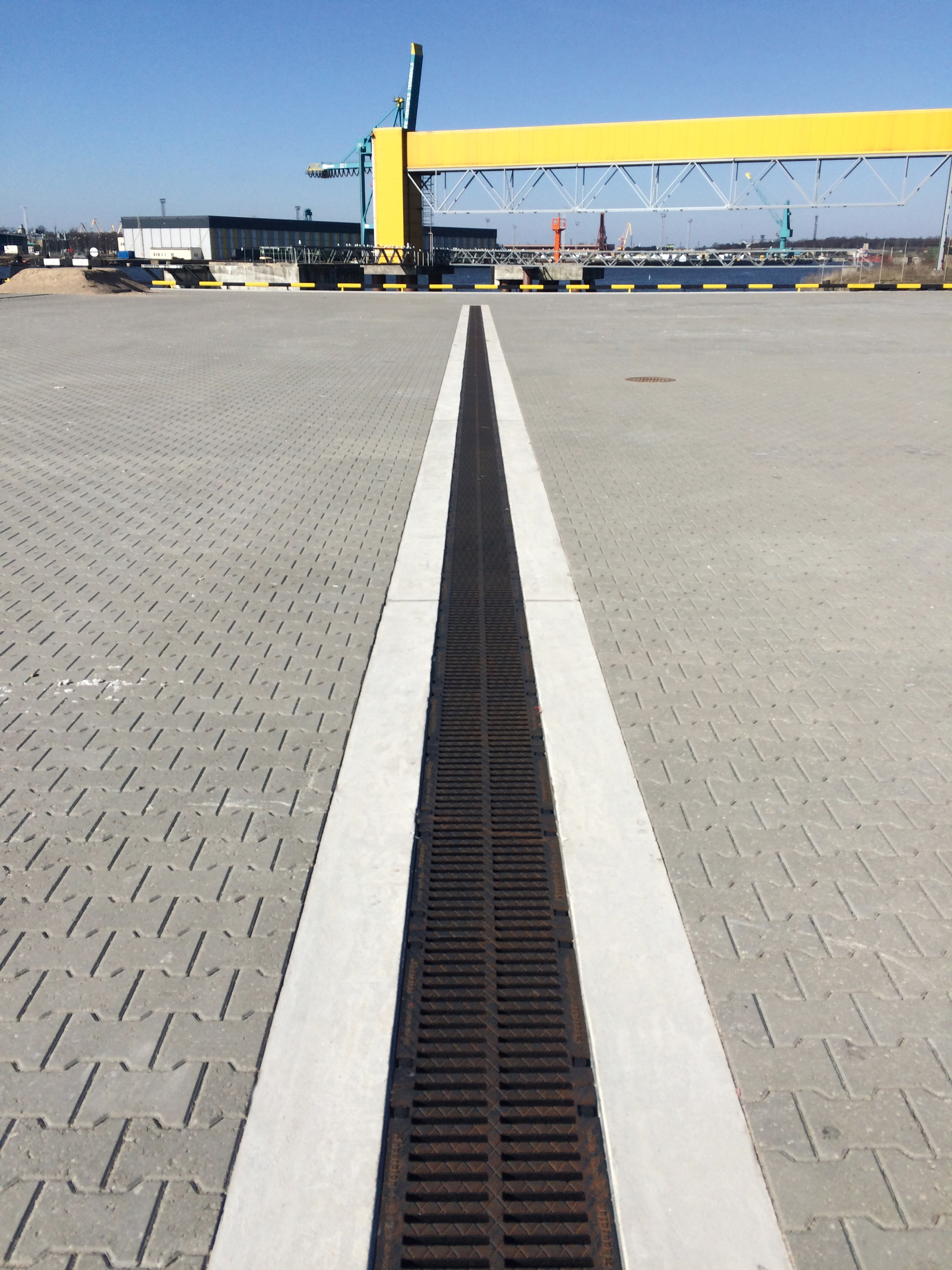

FASERFIX SUPER Applications
