RECYFIX NC heavy duty drainage made of recycled composite

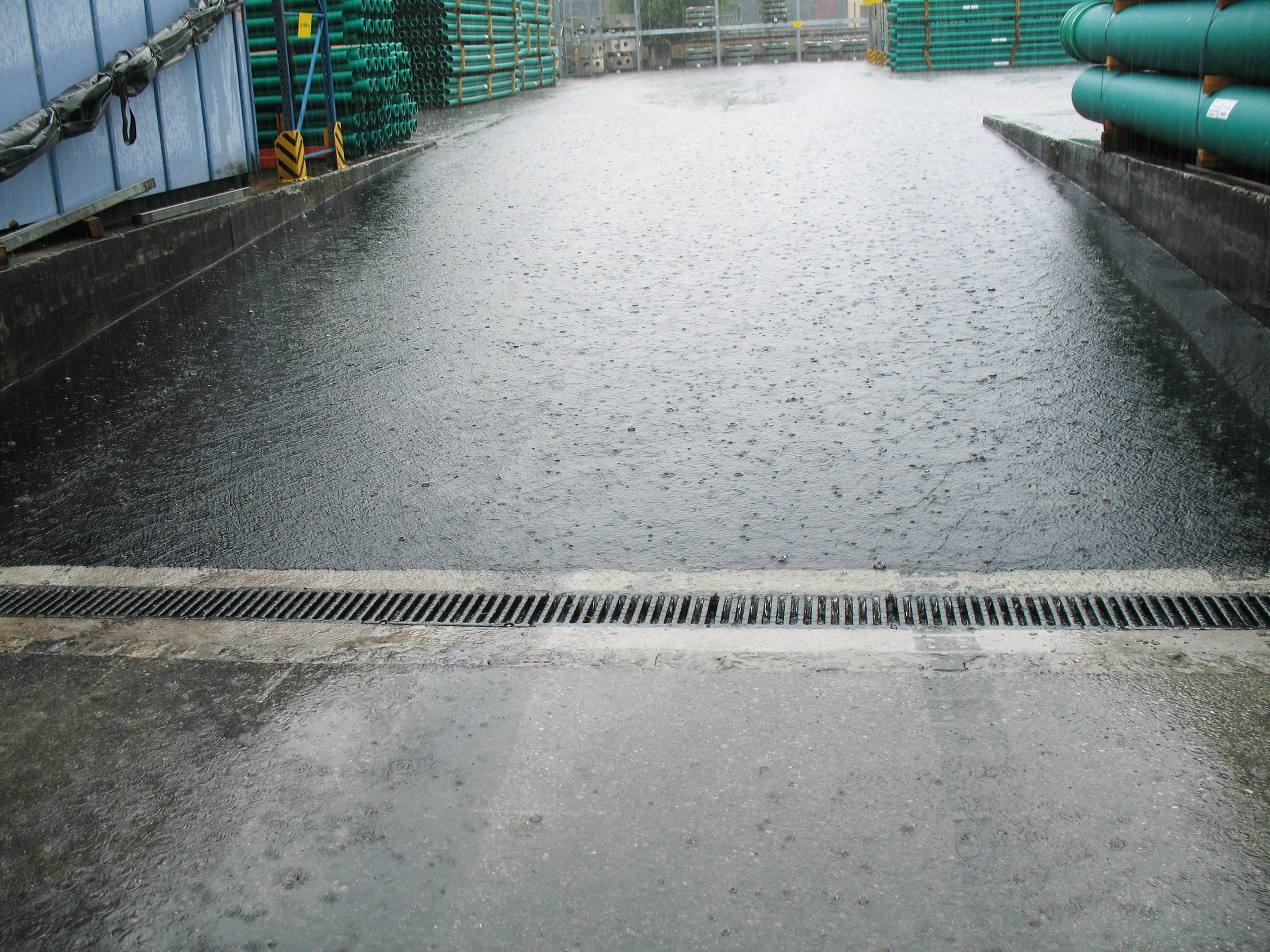

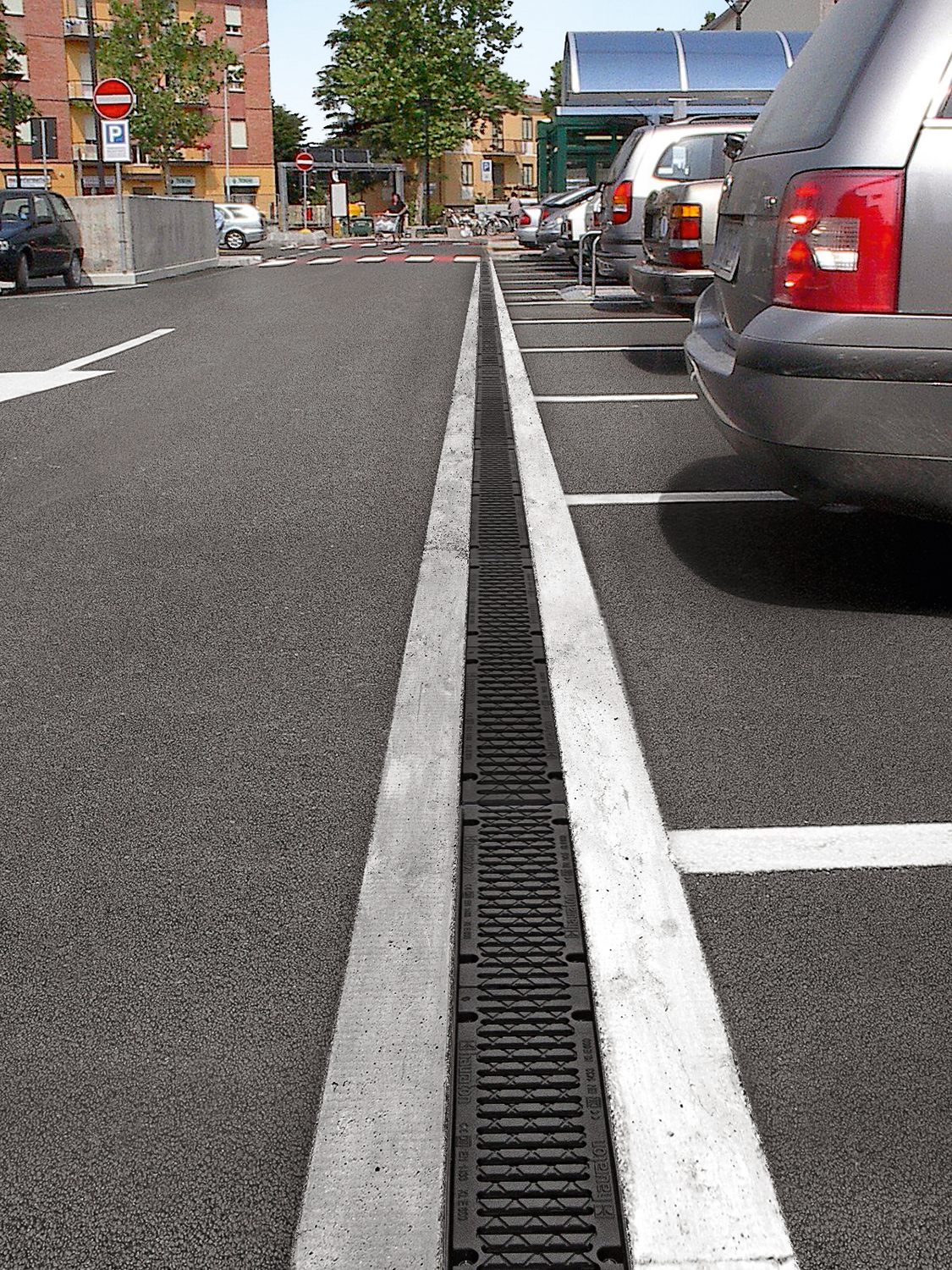

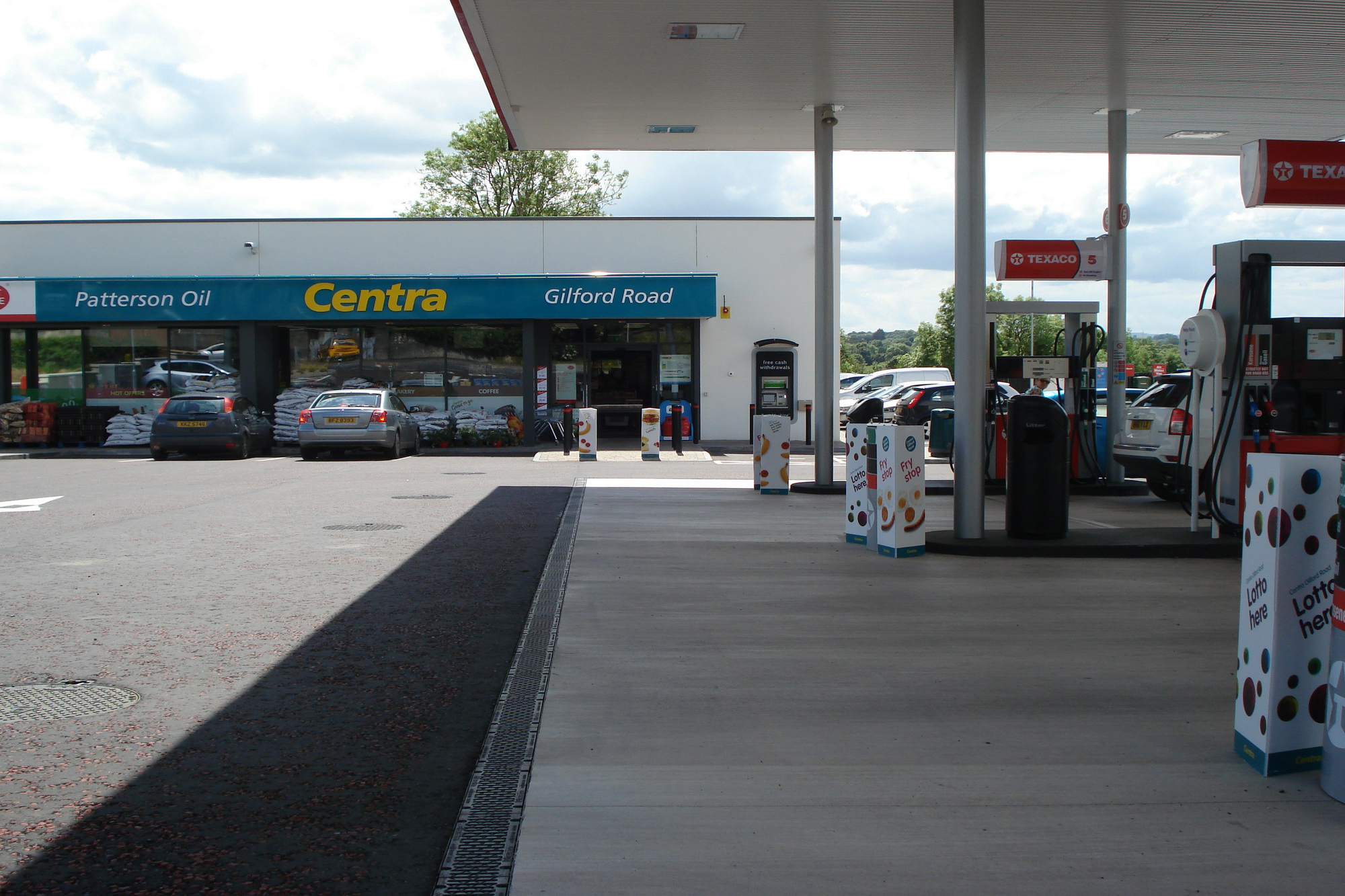

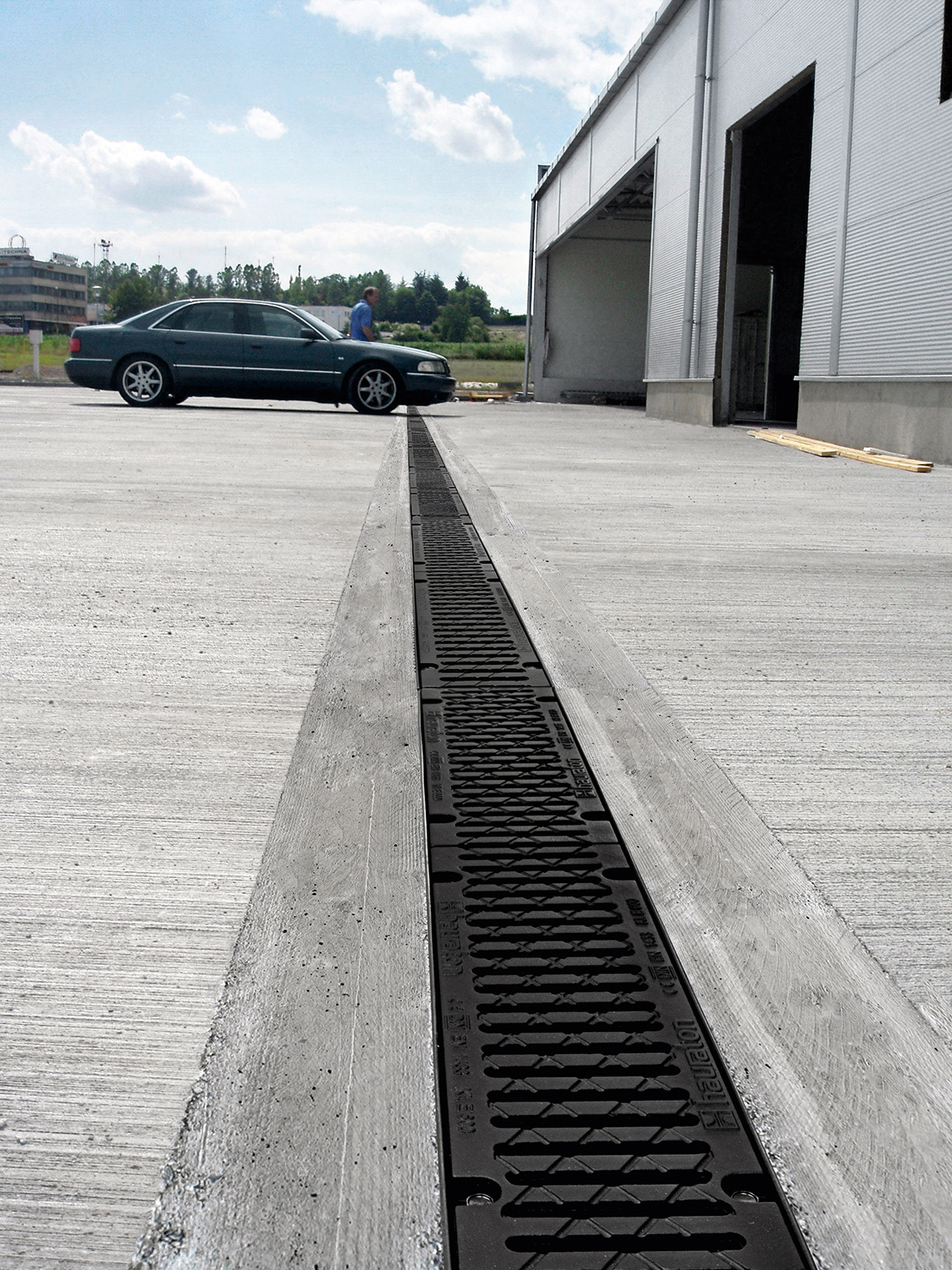

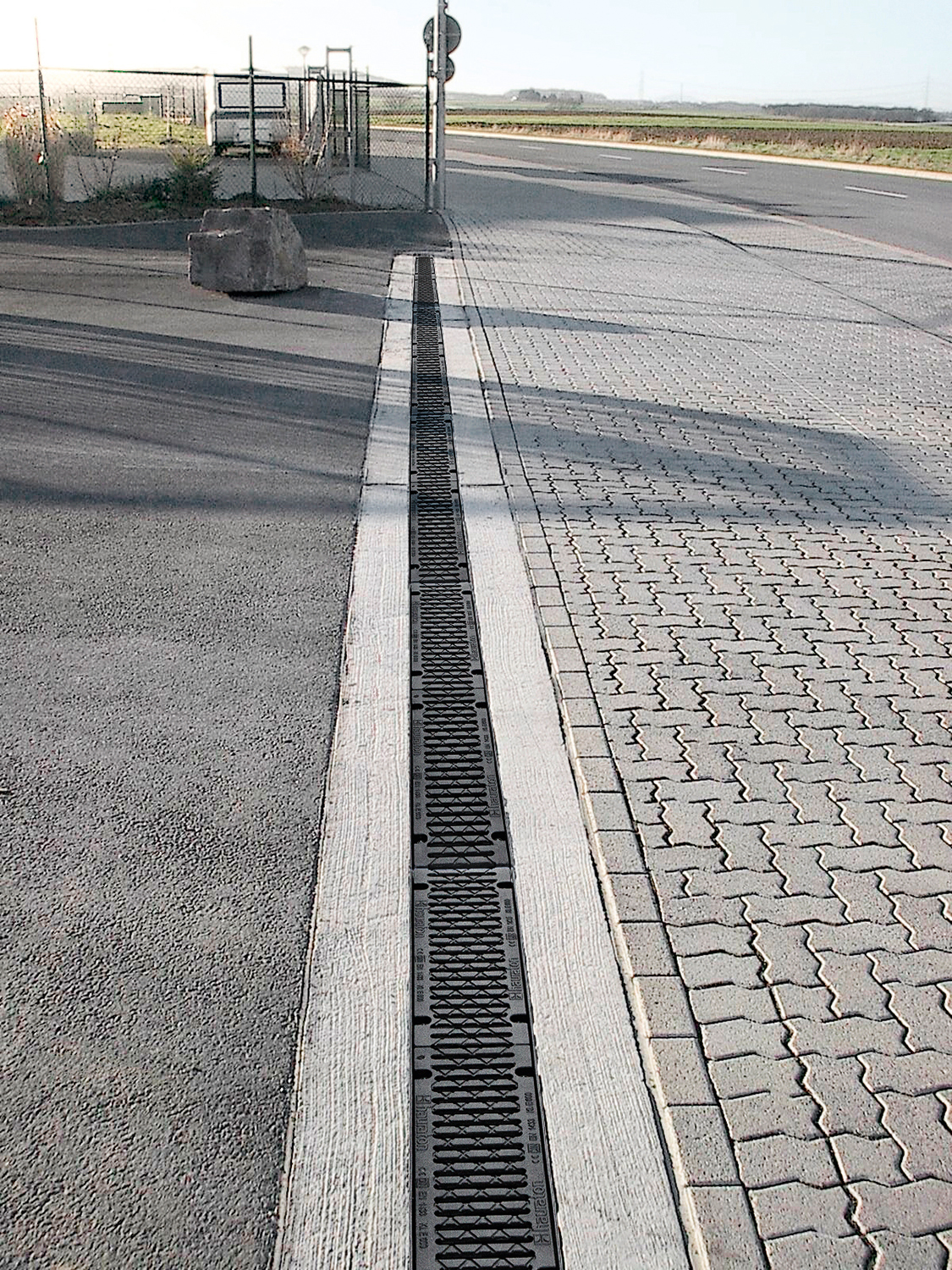

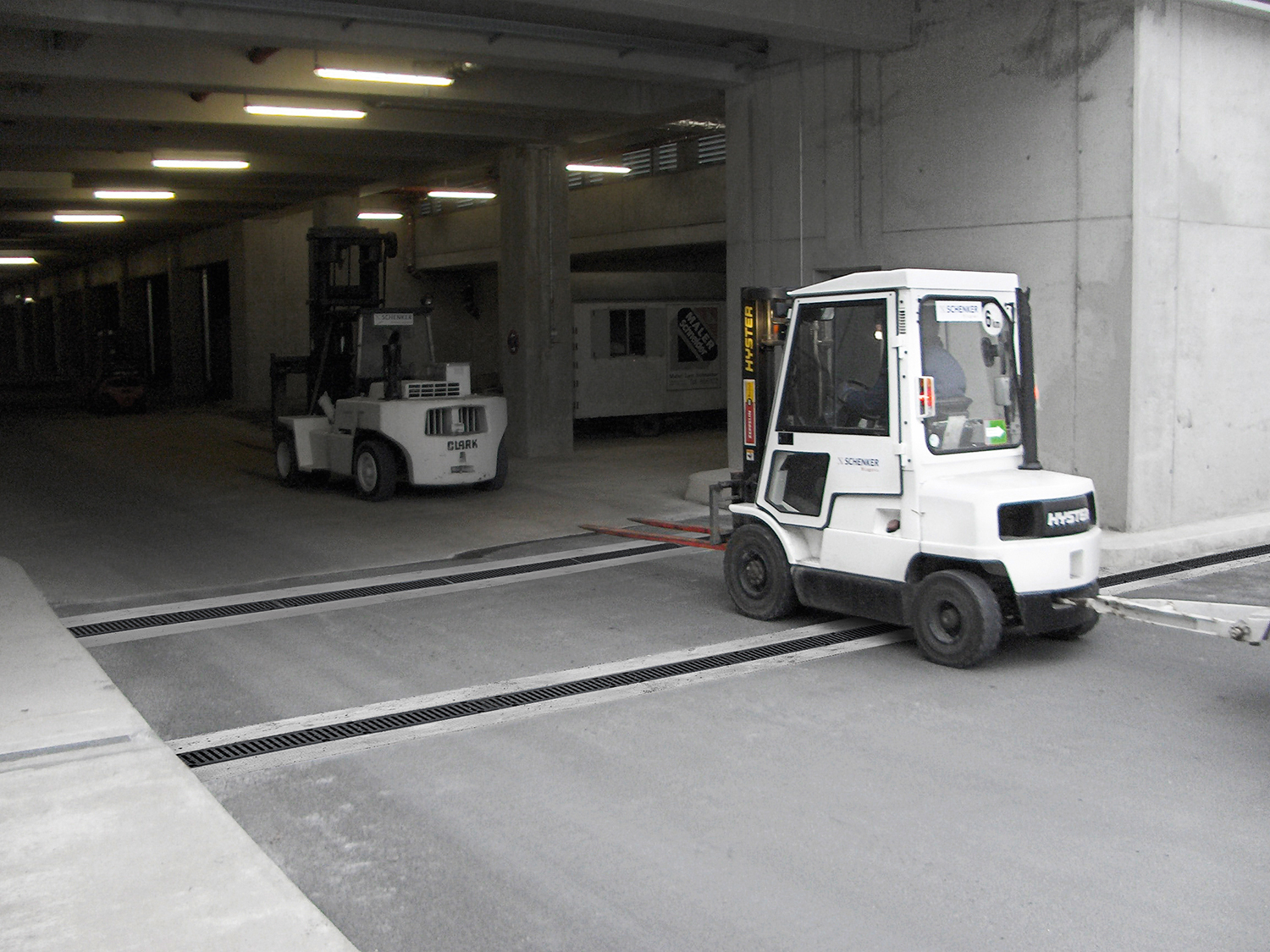

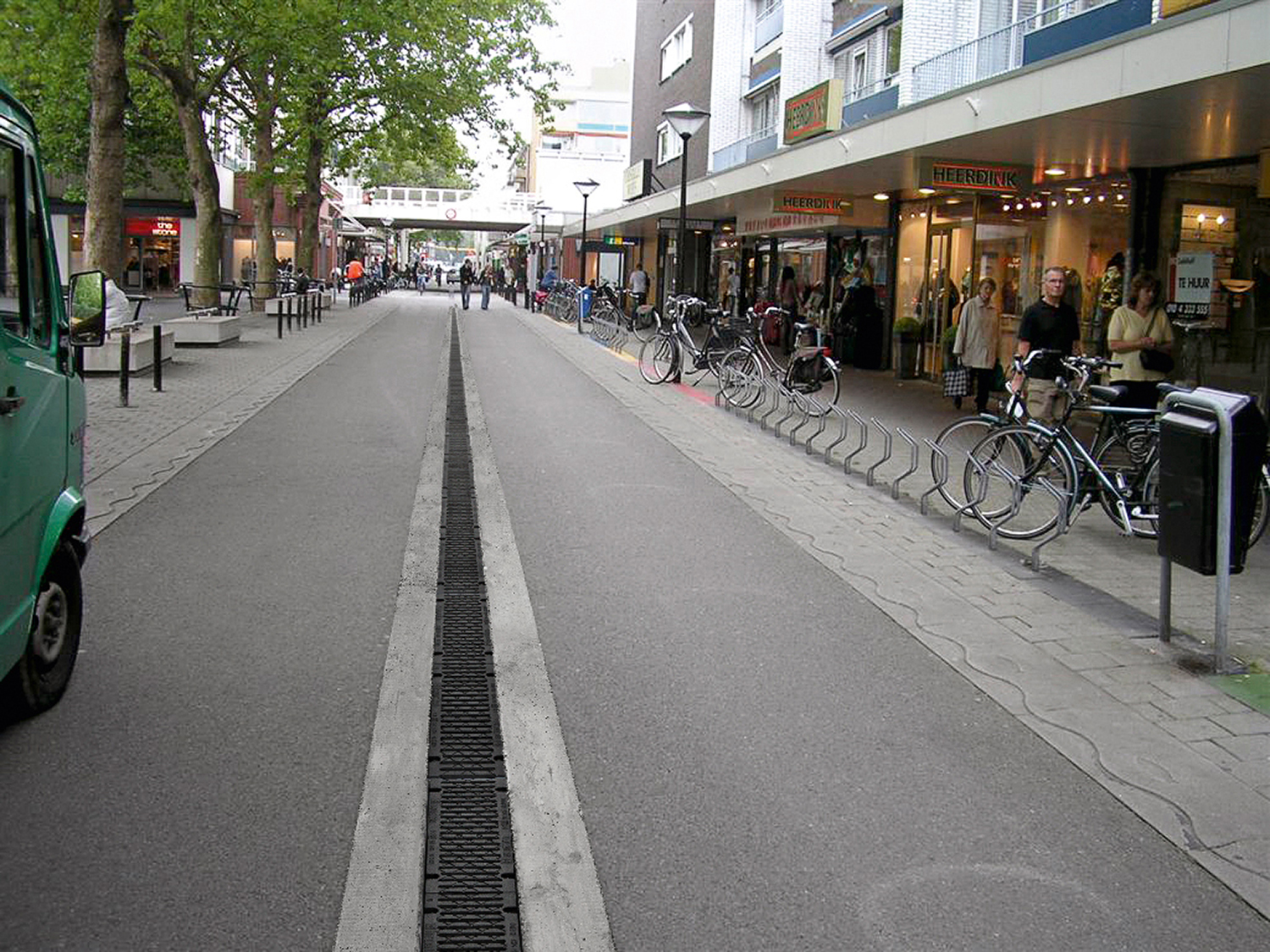

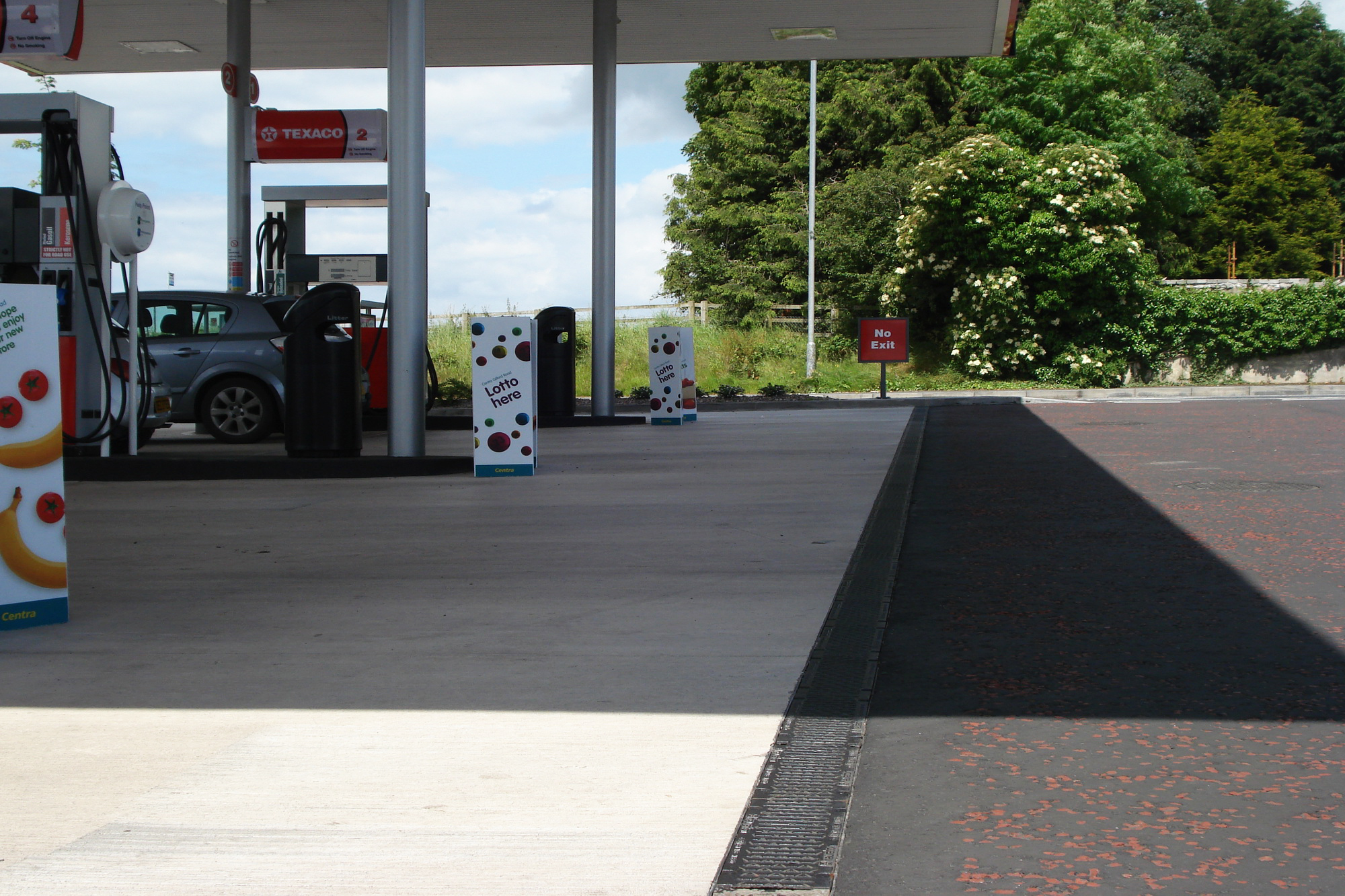

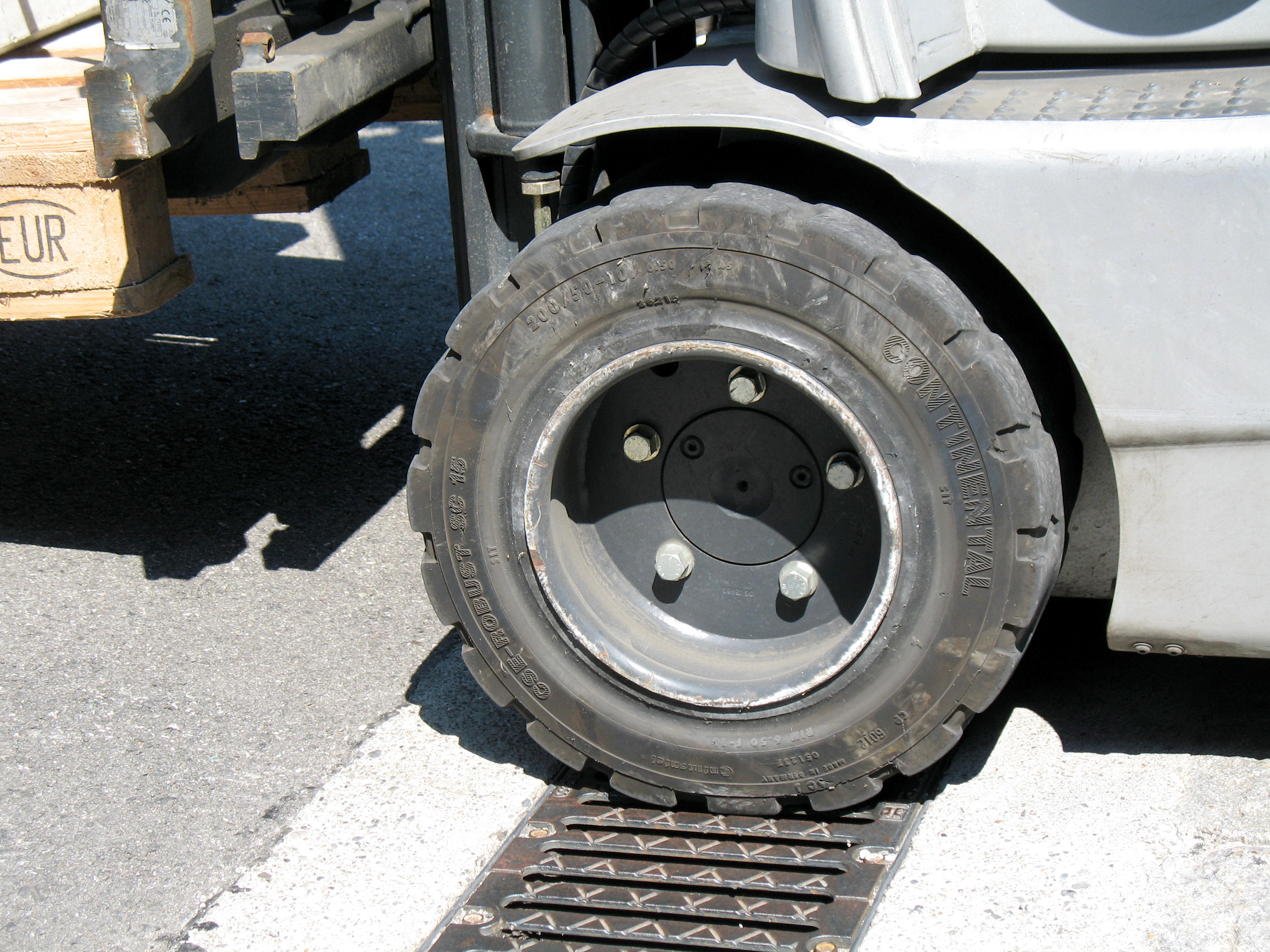

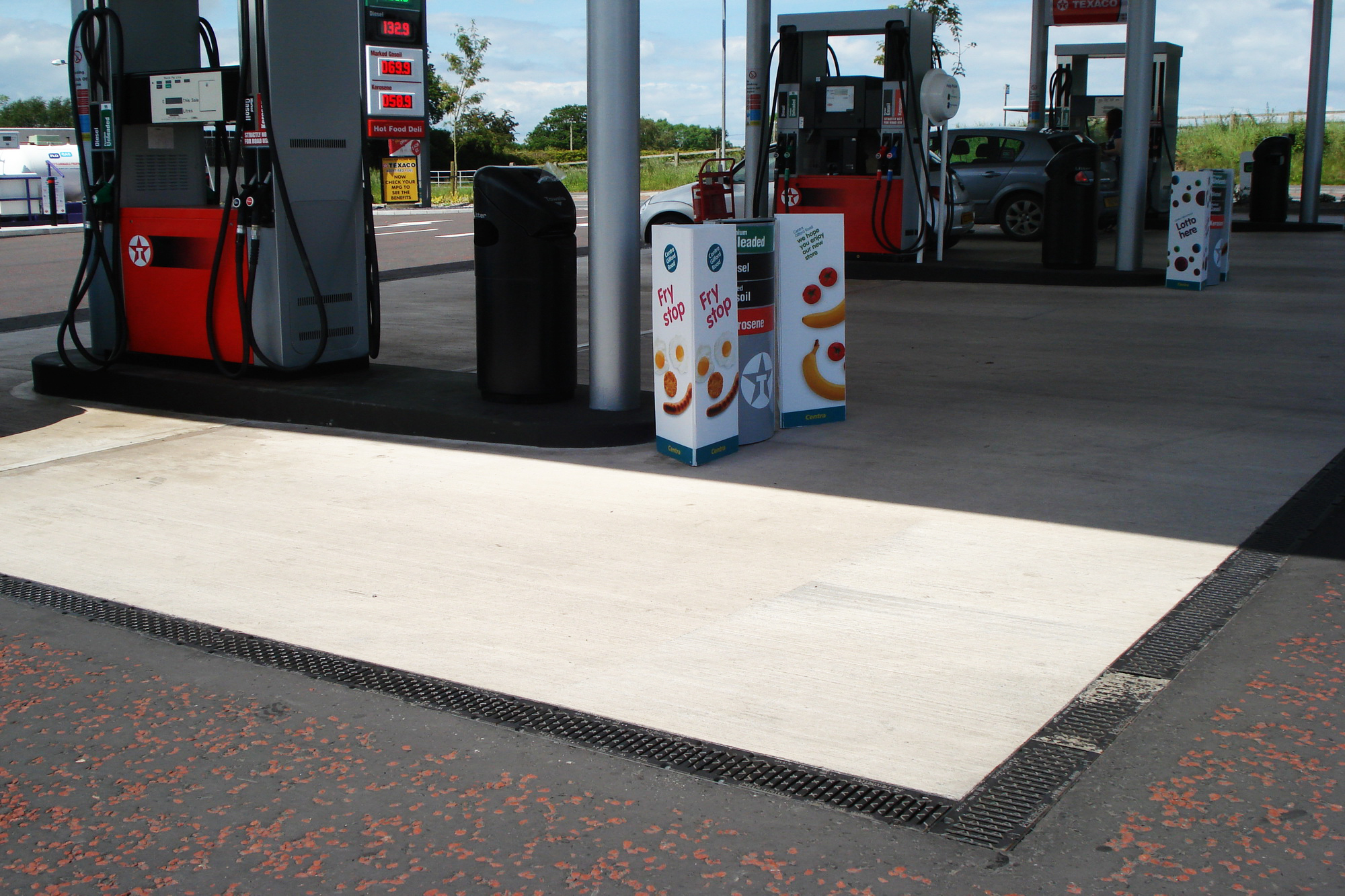

IDEAL FOR: heavy duty applications with higher traffic up to class E 600, such as car parks, industrial estates and petrol stations.
%s


IHRE NUTZEN MIT RECYFIX NC

VERY HIGH STABILITY

= Performance assured | Quality assured
SHOW DETAILS

VERY HIGH STABILITY

  • massive ductile iron grating
  • RECYFIX®NC 100, 200, 300: load class E 600
  • RECYFIX®NC 400: load class D 400
  • 8-fold bolted per metre
= Performance assured | Quality assured

INTEGRATED ANGLE HOUSING

= Performance assured
SHOW DETAILS

INTEGRATED ANGLE HOUSING

  • according to EN 1433
  • molded as integral part of the channel body (made of PP)
  • ridges to stop any lateral movement
= Performance assured

EASY HANDLING ON SITE

= Time savings | Cost savings
SHOW DETAILS

EASY HANDLING ON SITE

  • much lighter than channels made of polymer / resin concrete
  • easy transport and installation Example (complete system - 1 m channel incl. gratings) NW 100 = 10.7 kg, NW 200 = 20.8 kg
= Time savings | Cost savings


HIGH-GRADE MATERIAL

= Performance assured | Quality assured
SHOW DETAILS

HIGH-GRADE MATERIAL

  • RECYFIX® - stable and almost unbreakable
  • elastic and especially robust material
  • withstands high loads and temperature differences in daily use
  • 100 % recycled composite body (and also 100 % recyclable) ---> 100 % environmentally friendly
  • 0 % water absorption
  • smooth inner surface for superior flow characteristics
  • non-conductive
  • PP channel body can be cut, drilled and worked easily on site
= Performance assured | Quality assured

HIGH RESISTANCE

= Longevity | Quality assured
SHOW DETAILS

HIGH RESISTANCE

  • high resistance against frost, de-icing salt and UV-rays
  • withstands high temperature differences
  • for climate ranges from - 50 °C to + 80 °C and more
= Longevity | Quality assured

PRE-ASSEMBLED READY FOR INSTALLATION

= Cost minimisation
SHOW DETAILS

PRE-ASSEMBLED READY FOR INSTALLATION

  • channel and grating = one part
  • no spare parts
  • easy handling in stock and on construction site
  • cost-efficient transport
= Cost minimisation


SELF-CENTERING BOLT

= Cost savings | Quality assured
SHOW DETAILS

SELF-CENTERING BOLT

  • the bolt automatically finds the right position
  • bolts easily detachable even after years of use
= Cost savings | Quality assured

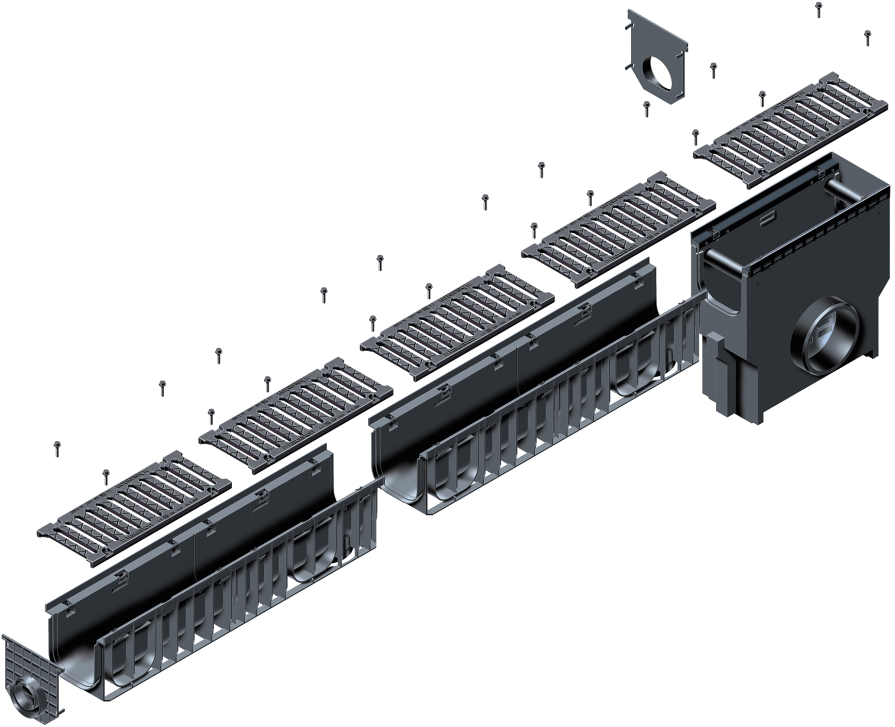

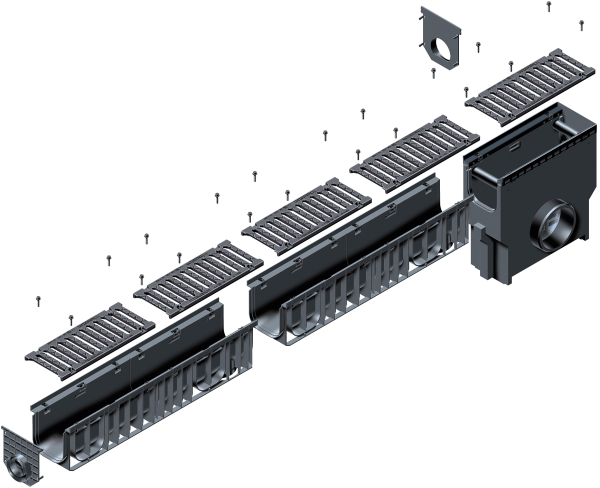

THE SYSTEM IN DETAIL

%s

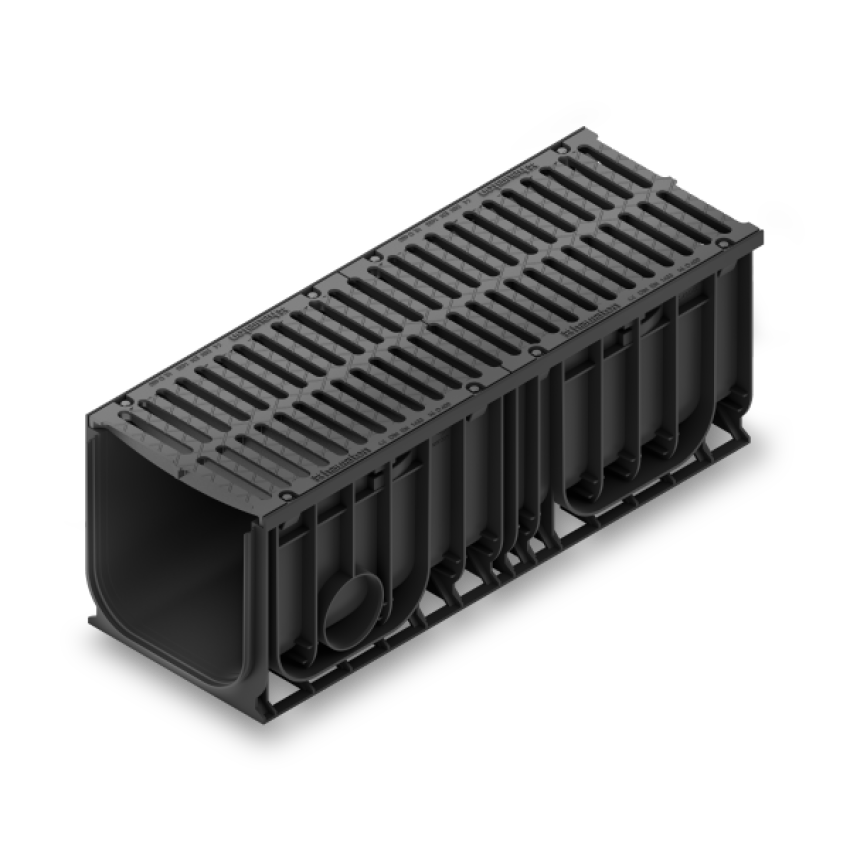

Latakai, pagaminti iš PE-PP su integruotomis plieno briaunomis, remiantis DIN V 19580 / EN 1433 reikalavimais, "liežuvėlio ir įpjovos jungtis" užtikrina tikslų montavimą
Stabilios kaliojo ketaus grotelės
Ištekėjimo dėžė su ištekėjimo vamzdžio pajungimo galimybe iš 2 pusių
Galinė sienelė
Galinė sienelė su pajungimo galimybe


RECYFIX NC Applications
